Hp 8684B signal gernerator 5.4 - 12.5 ghz

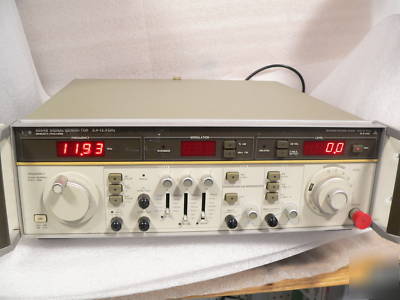

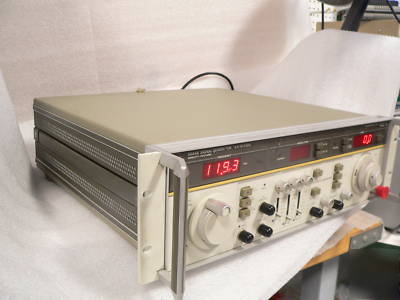

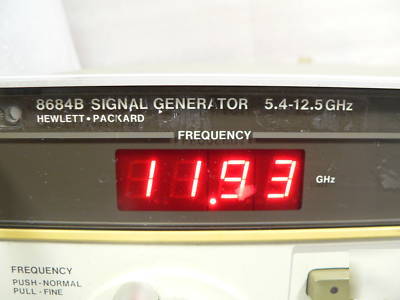

HP 8684B SIGNAL GENERATOR 5.4 - 12.5 GHz

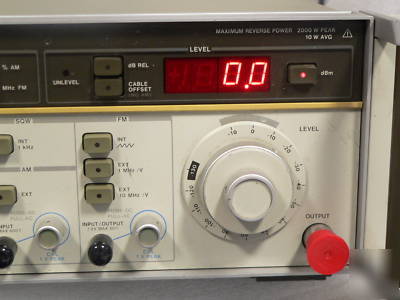

MAXIMUM REVERSE POWER 2000 W PEAK, 10 W AVG.
This Signal Generator is a high performance generator with the capability to test modern communications, radar and EW systems.
This unit generates high quality AM, FM , and pulse modulation, including a built in pulse generator.
It has FM modulator with up to 5MHz deviation and built-in pulse modulator.
* Amplitude Modulation Depth (1KHz rate)0 - 70%, Rates (3dB BW at 40% depth) DC to 10KHz (DC coupled); 50Hz to 10KHz (AC coupled)
* Frequency Modulation Peak deviation: 5MHz, Rates (3dB BW): DC to 10MHz, 100Hz to 10MHz (AC coupled)
* Pulse Modulation, Internal Pulse Generator Rate: 10Hz to 1MHz Width: 50ns to 100ms
