> General int 80-225HC 8" parallelogram jointer (helical)

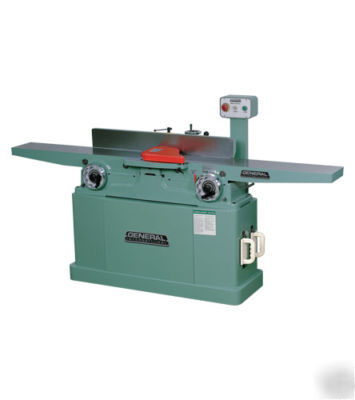

General int 80-225HC 8" parallelogram jointer (helical)
MAGNUM BLADE SYSTEM HELICAL CUTTER HEAD
Wider (30mm) two-sided inserts provide greater cutting edge at a reduced cost.
25% longer blade edge life for less frequent insert replacement.
35% fewer blade inserts per head for faster less expensive replacement and reduced down time.
Ideal blade insert angle suited for both soft and hardwood applications while requiring less horse power to operate.
Unique insert locking system greatly minimizes grain tear-out and lines on the workpiece.
No special torque tools required minimizing stripped screws and cracked inserts.
Large surface, ground cast-iron tables for stability and added support when feeding longer stock.
Large, heavy-duty center-mounted cast-iron fence with 45 , 90 and 135 positive stops.
Precision four point parallelogram table adjustment system allows for easy parallel alignment of in-feed and out-feed table to the cutterhead and each other.
Independent in-feed and out-feed table height adjustment hand wheels.
Heavy duty closed base stand for maximum stability.
Magnetic safety switch mounted above the in-feed table for quick, easy access.
Includes 2 hand-paddle style push blocks with onboard storage mounts.
Convenient front to back fence adjustment hand wheel.
8 1/16 x 82 7/8 (206 x 2106 mm)
4 1/2 x 38 1/2 (114 x 978 mm)
4 ROWS TOTAL 22 DOUBLE-SIDED INSERTS
