Silent knight 5104B fire alarm system and udact panel

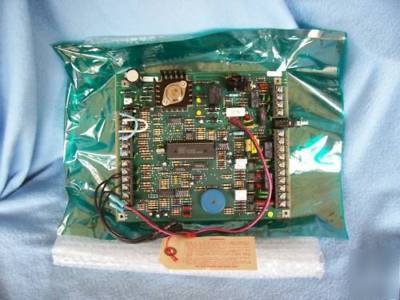

Silent Knight 5104B Fire Alarm System and UDACT Panel(used).
Fully tested and 100% Functional! No DOA!
* UL 864 Listed for NFPA 72 Central Station and Remote Supervising Station Fire Alarm System Service.
* Can be used as a stand-alone or as UDACT
* Six fully supervised inputs: one Class A (Style D) input, and five Class B (Style A) inputs.
* Downloadable for remote programming.
* Fuseless overload protection with automatic reset circuitry and fault indicators - eliminates the cause of most field calls.
* Automatic self test every 24 hours with report sent to central station
* Reports in SIA and most major communications formats
* Operates on loop start phase lines ahead of the building PBX system
* A single, programmable output is provided for alarm or dialer failed conditions (cannot be used for evacuation purposes).
The Silent Knight Model 5104 is a six-zone fire control communicator providing digital fire reporting over ordinary telephone lines, eliminating the need for costly leased lines. It's UL 864 and NFPA 72 approved for monitoring local evacuation controls.
As a stand-alone unit, it can be used to monitor:
Sprinkler systems for waterflow, supervisory, and gate valve tamper conditions.
Automatic fire detection systems for structures that are not required to have a fire alarm system but want property protection (e.g. to call the fire department after hours).
Dry contact alarms, trouble and supervisory outputs, then transmits a separate code for each.
The Model 5104 is fully supervised. Its microprocessor constantly runs programs to monitor AC, standby battery, zone inputs and telephone line connections. If a fault condition is detected, it sounds a local trouble audible and reports the condition to the central station. If one of the telephone lines faults for more than 45 seconds, it will automatically switch to the other to report the failure.
