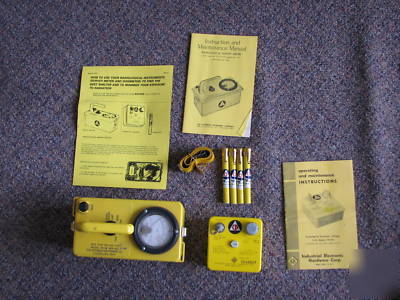

Victoreen geiger counter meter cdv 715 w cdv 750 cd v
The CD V-715 is a portable monitoring instrument which measures gamma radiation dose rates as high
as 500 roentgens per hour. It is designed to be used by radiological Civil Defense personnel in determining
radioactive contamination levels that may result from an enemy attack or other nuclear disasters.
Instrument accuracy on any of its four ranges is within 20% of the true dose rate from Cobalt 60 gamma
radiation. This accuracy is maintained throughout a temperature range of -20 F to +125 F, relative
humidities to 100% and at altitudes from sea level to 25,000 feet. Use of the remote cable feature
should give less than 5% change in reading. The case consists of three sections. The top section contains
the meter and almost all of the circuit. The bottom section contains the ion chamber and provides for
storage of the 25 feet of triaxial cable and the storage spool. The center section provides for electrically
connecting the circuit board on the top section to the ion chamber from the bottom section.
This unit can be operated as a hand held unit or in the remote configuration.
The CD V750-5 is a radiological dosimeter charger or "Zero" the quarts fiber dosimeters. WITH 4 DOSIMETERS
