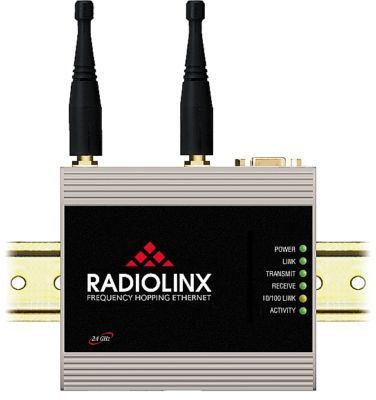

Prosoft radiolinx rlx-fhe
The application that I bought these for requires that the radios be anywhere from 5ft to 1500ft away from each other (mobile unit). The longer range is not an issue but if the radios are too close to each other (up to 10ft) the signal gain is too great and affects communication. Unfortunately these didn't work for my app. My loss is your gain, paid over $3000 for the set from my local distributor.
Each radio comes in the original box which includes radio, antennas, CD, manual, ethernet cables, programming cable and power adapter.
I can post or email more pics if requested.
2400 to 24835.5 MHz (varies by country)
All standard IEEE 802.3 protocols
Peer-to-Peer, store and forward repeater
64 independent, non-interfacing networks
32-bit CRC and ARQ (Automatic Re-Send Query)
1mW to 250mW, programmable (varies by country
64 North America (varies by country)
500 to 1500 ft (150 to 450 meters)
15 + miles line of sight with high-gain antennas
Extruded aluminum with DIN and panel mount
4.10" x 3.71" x 2.05" (104.1 mm x 94.23 mm x 52.07 mm)
10/100 Base-T connector, shielded RJ45
Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 s, applied as specified in section 5.3.2 of IEC 60950: 1991
Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
-40 C to +70 C (-40 F to 158 F)
EMC EN 301 489-1, EN 301 489-17
