Graco fusion mechanical purge gun 247007
Compare to those selling new for $2340

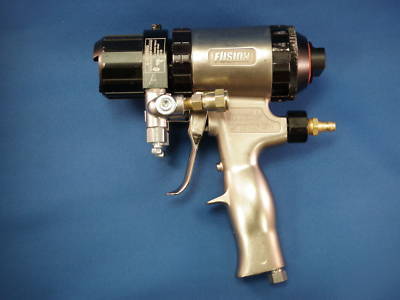

The gun pictured is one of those being offered. All 3 guns look similar.
These guns have been used but have been completely rebuilt and are in excellent condition. They may have some blemishes. They are warranted to be free from defects and have been tested to assure performance to factory specifications. The guns are covered by a 90 day factory warranty that can be serviced by any of over 700 service centers around the country
The guns are warranted to be free from defects and to perform up to the factory specifications. Call us if there is something wrong. We can either help you repair it over the phone or recommend a service center in your area.
Handles from very low output, thin mil applications to large, high flow, high-output
applications just by changing the mix module and tip
Easy mechanical cleaning mix modules and tips are cleaned with a drill bit
Smoother finish and better atomization
Offers more advanced features than all other mechanical-purge guns combinedTechnical Specifications
Maximum Fluid Working Pressure 3500 psi (24.2 MPa, 242 bar)
Minimum Air Inlet Pressure 80 psi (0.55 MPa, 5.5 bar)
Maximum Air Inlet Pressure 130 psi (0.9 MPa, 9 bar)
Maximum Fluid Temperature 200 F (94 C)
Air Inlet Size 1/4 npt Quick Disconnect Nipple
A Component (ISO) Inlet Size -5 JIC; 1/2-20 UNF
B Component (Resin) Inlet Size -6 JIC; 9/16-18 UNF
Typical Flow Rate See charts pages 4-7.
Sound Pressure 70 dB(A), at 100 psi (0.7 MPa, 7 bar)
Sound Power, measured per ISO
79.9 dB(A), at 100 psi (0.7 MPa, 7 bar)
Aluminum, stainless steel, carbon steel, chemically resistant o-rings,
ultra-high molecular weight polyethylene (UHMWPE), Polycarballoy ,
Fusion MP Part Number and Tip Selection
3 Guns available with any one of the tips listed above
