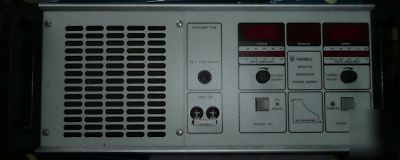

Farnell AP100-90 autoranging power supply
AP100-90 Power supply 0-100V up to 90A
AP SERIES AUTORANGING POWER SUPPLIES 3kW MODELS
230V +/-14%. 48-63Hz. with power
factor correction. 115V versions not
available. Max rms input current 20A.
1. Manual using 10-turn controls
2. Voltage or resistance programming
CV: 4mV rms/40mV pk-pk typical
(CV typical) <2ms for recovery within
100mV following change in output
current of 10% of max. rating at that
Resistance: 0-4k7 provides zero
to V/I max. Voltage: 0-5V provides
zero to V/I max. Response time: up
2 to 60V input shuts down output
Maintains nominal voltage at the load
Twin 3 digit LED panel meters for
volts and amps. Twin 20-segment
bargraphs to assess voltage and current
capacity within power envelope.
For mode indication, trips etc.
Inherent via CV/CI. Adjustable
Overtemperature (OT) protection.
Fan assisted. Draws front, exhausts
