Baileigh r-M40 roll bender angle ring rolling machine

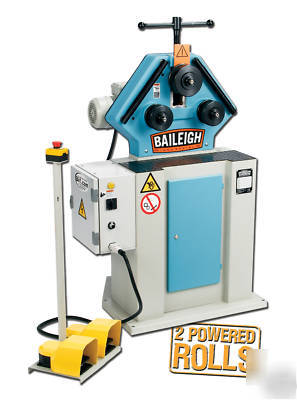

R-M40 Check out the video: http:// /videos/roll-bender-videos.php Click here for capacities and specifications: http:// /benders/ring-angle-bender-rm40.php The R-M40 metal ring roller is perfect for rolling various sections such as hay hoops, coils of tubing,
stair railing pipe and much more. Like most Baileigh ring rolls the machine is manufactured using heavy steel plate,
industrial grade transmissions, variable speed inverter driven drives, and much more.

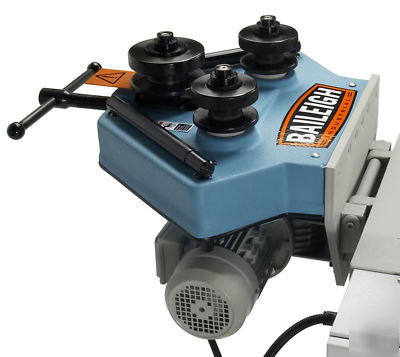

This ring roller can bend in both the horizontal and vertical positions. It comes standard with a set of segment rolls that can be
used for bending flat bar, solid rod, and some square applications. Additional rolls are in stock for tubing and pipe, as well as
other profiles. A solid base has a storage cabinet for tooling and other options.

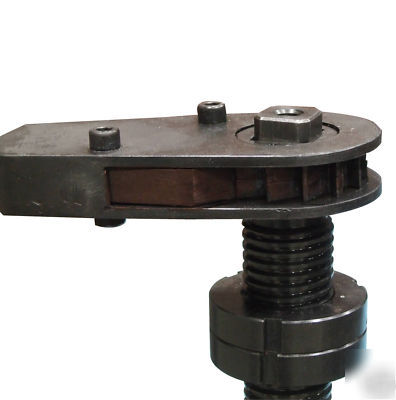

Like all manual down feed single pinch ring rolls, there are lateral roll guides as standard and a scaled position indicator for top roll position repeatability.
Overload protection is via a Siemens inverter drive that also allows the machine to be variable speed.

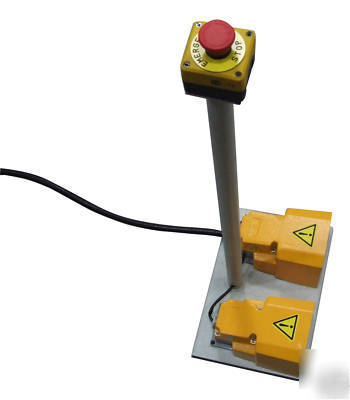

Sturdy foot pedal controls determine the direction that the operator will roll the section of metal.
R-M40 roll benders require 220 volts of single phase power, so they are great for any fabrication shop or job site.
Please Email me ****@bii1.com or call me for a freight quote. Best regards, Shane Henderson
