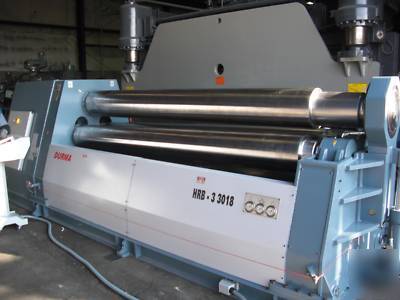

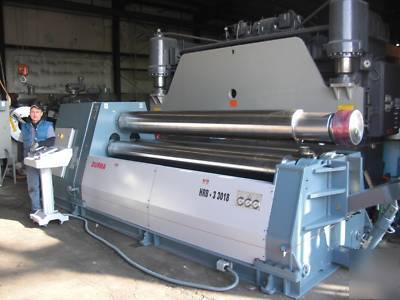

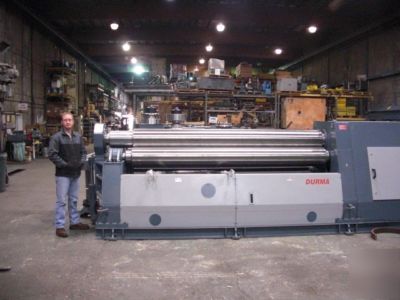

New nice 3/4" x 10' hydraulic plate roll
Top Roll Diameter........................... 13.54"
Side Rolls Diameter........................ 12.02"
Motor................................................ 20 HP
Machine Length.............................. 213"
Machine Width............................... 75"
Machine Height............................... 67"
Machine Weight............................. 32,000 lbs.
Bending Length............................... 122"
(Please see attached capacity Chart)

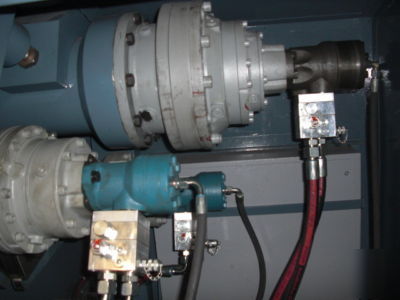

Control unit with Digital readout s / Cone bending / Hardened rolls (54-60RC)/ Electronic side roll Leveling-control / Stress relieved steel construction-machine frame / 4140 Forged rolls / Variable speed control / All rolls Mounted on Bearings / Hydraulic drop end/lift of top roll / All rolls Driven by Hydraulic motor-Italian planetary gear box / Hydraulic-Electrical system-common off the shelf Domestic parts
Machine instock Salt Lake, Machine advertised locally,
