omega 871A digital thermometer with dual inputs

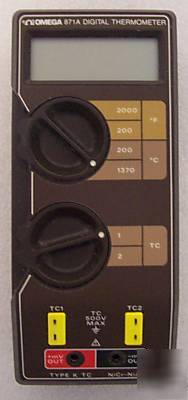

Omega 871A Digital Thermometer with Dual Inputs
Accuracy: +/-(0.25% of rdg + 1.8 Degrees F)
for 1 year, 18 to 28 Degrees C (64 to 82 Degrees F)
ambient; includes NIST conformity (no data points),
cold junction compensation and repeatability errors;
Repeatability: +/-0.2 Degrees C typical for 1 week
at constant ambient temperature
Temperature Coefficient: 18 to 28 Degrees C
(64 to 82 Degrees F); included in accuracy
specification; 0 to 18 Degrees C (32 to 64 Degrees F)
and 20 to 50 Degrees C (82 to 122 Degrees F); less than
+/-(0.025% of reading) + 0.1 Degrees C
Model 871A: Multislope A/D with 11 piece-wise linear
segments from -40 to 1370 Degrees C (-40 to 1999 Degrees F)
Display: 31/2 digit LCD, 15 mm (0.6")
height, polarity, decimal point, open sensor, overrange and
Battery Life: 100 hours typical, with 9 V alkaline battery (Not included)
Battery Indicator: Display reads "BAT" when less than 10% of life remains
Analog Output: 1 mV/Degree C (5/9 mV/Degree F) on 200 Degree ranges;
0.1 mV/Degree C (5/9 Degree F) on other ranges
Analog Output Accuracy: +/-3% +/- 1 mV on 200 Degree ranges;
+/-3% +/-0.1 mV on other ranges
Operating: 0 to 50 Degrees C (32 to 122 Degrees F),
Storage: -35 to 60 Degrees C (-31 to 140 Degrees F)
Maximum Common Mode Voltage: 500 V
Dimensions: 178 H x 78 W x 42 D mm (7 x 3.1 x 1.6")
