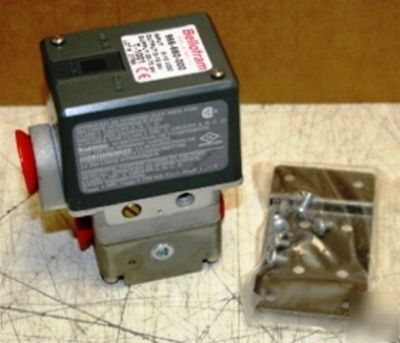

Marsh type 1001 i/p & e/p transducer pn: 966-660-000
Marsh Bellofram Type 1001 I/P & E/P Transducers PN: 966-660-000
Includes Copy of Instructions & Hardware !
The Type 1001 is a patented family of electro-pneumatic instruments that is used to reduce a supply pressure to a regulated output pressure which is directly proportional to a two-wire current or three-wire voltage input. This design incorporates closed loop sensing of the output pressure to achieve excellent accuracy and vibration stability. It also features a unique damping circuit which can be adjusted to prevent overshoot and actuator hunting . Model selection includes General Purpose (NEMA 1), Rainproof (NEMA 3R), and Watertight/Corrosion Resistant (NEMA 4X). NEMA 4X models are also explosion proof, and all models are intrinsically safe.
* Built-in volume booster provides flows up to 12 SCFM
* Easy access zero and span adjustment
* Damping pot prevents over shoot and hunting
* Mounts at any angle (NEMA 3R limited)
* Virtually no sensitivity to supply pressure changes
* Removable orifice (screw) for easy maintenance
The Type 1001 s precisely regulated pneumatic output can be used to operate:
* Louver and damper actuators
* Liquid and Gas Processing
* Accuracy (per ISA 51.1): 0.10% of output span, typical; 0.25% of output span, maximum
* Hysteresis: 0.01% of output span, typical; 0.10% of output span, maximum
* Repeatability: 0.01% of output span, typical; 0.10% of output span, maximum
* Ambient Temperature Effect: 0.004% of nominal span per F, typical; 0.022% of nominal span per F, maximum
* Span: 0.013% of calibrated span per F, typical; 0.022 of calibrated span per F, maximum
* Temperature Effect: 0.02%/F, zero and span effects combined
* Operating Temperature Range: Buna-N elastomers: -20F to 160F (-29 to 71C); Viton elastomers: 0F to 160F (-18 to 71C)
* Storage Temperature Range: Buna-N elastomers: -40F to 200F (-40 to 93C); Viton elastomers: -15F to 200F (-26 to 93C)
* Vibration Effect: Less than 0.5% of span per 1G, 5-2000Hz, 3G maximum, 3 axes
* Mounting Position Effect: Not measurable
* Loop Load, I/P Transducer: Less than 10VDC drop at 20mA; Less than 12VDC drop at 50mA
* Supply Voltage, E/P Transducer: Intrinsically Safe/Nonincendive: 9VDC to 28VDC, less than 20mA; General Purpose: 9VDC to 40VDC, less than 20mA
* Supply Voltage Effect: No effect
* Signal Impedance, E/P Transducer: 6000 ohm min
* RFI/EMI Effect (NEMA 4X): Less than 0.25% of span change in output, 10V/meter, 20-1000MHz
* Supply Pressure Sensitivity: No effect
* Air Consumption: 0.07 SCFM (2 LPM) max
* Supply Pressure: 100 PSIG (6.9bar) max
* Port Sizes: Pneumatic: 1/4 NPT; Electrical: NPT
* 6 Nema 1, General Purpose Enclosure
* 0 None, Agency Approvals
