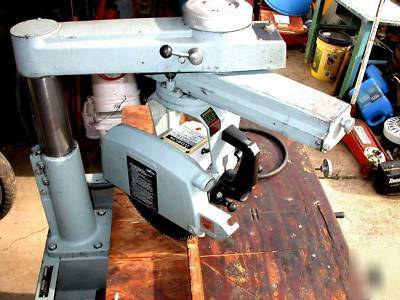

Delta radial arm 2 hp 12" 1PH commercial wood saw


Delta Radial Arm 2 HP 12" 1ph Commercial Wood Saw
The following information is provided by Delta:
Full 3 3/4" depth of cut at 90 , 2 1/2" at 45 blade tilt. Crosscuts 14 3/8"
Unique turret arm action permits saw blade to rotate 360 above work
table, giving full table capacity for left and right hand miters.
Built-in mechanical brake stops blade in seconds.
The rigid channel, cast-iron frame and heavy column provide perfect
alignment and continued accuracy.
Precision indexing with positive stops for 90 and 45 miter cuts is
precision machined for lifetime accuracy.
Powerful 2HP motor includes a mechanical brake stops the blade
Truck rods feature glass smooth hardened surfaces to minimize rolling
friction. May be rotated 180 for new bearing surface.
Additional Specifications direct from Delta:
Blade Diameter (supplied): 12" (305 mm)
Arbor: 5/8" -12 LH. Acme (16 mm) Capacities
Max. depth of cut: 3 3/4" (95 mm)
Dado Capacity: 1 13/16" (46 mm)
Max. depth of cut at 45 bevel: 1 1/4" (46 mm)
Bevel Positive Stops: 0 , 45 and 90
Miter Positive Stops: 90 and 45 R & L
Size: 25 1/2" X 30" (647 X 762 mm)
