Wilcom advanced F6222 optical fiber identifier
Wilcom Advanced F6222 Optical Fiber Identifier - New New
Model/Part No:F6222 Our Item ID: 5497
Wilcom Advanced F6222 Optical Fiber Identifier w/ Tone & Lock. Please Allow a 1 - 2 week lead time.

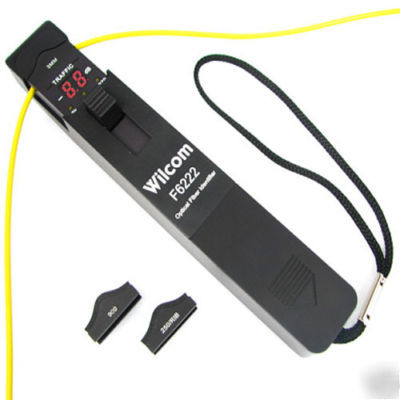

The Wilcom Model F6222 Telecom Optical Fiber Identifier is a rugged, easy-to-use installation and maintenance instrument which identifies optical fibers by detecting the optical signals being transmitted through a fiber. By utilizing local detection technology (non-destructive macro-bend detection which does not damage or overstress the fiber), this units eliminates the need to open the fiber at the splice point for identification; eliminating the probability of interrupting service.
This Optical Fiber Identifier detects low frequency tones at 270 Hz, 1000 Hz and 2000 Hz. When traffic is present on the fiber under test, an audible tone can be heard as well as the traffic direction which is indicated by LEDs illuminating on the probe.
During installations, maintenance, rerouting, or restorations it is often necessary to isolate a specific fiber without disrupting service. A light source such as Wilcom's Model FS1316 used in conjunction with the Optical Fiber Identifiers can make the job a lot easier.
This Optical Fiber Identifier includes a carrying pouch containing three easy to use field interchangeable adapter heads to accommodate; 900 m buffered fiber, ribbon or 250 m coated fiber and 3mm jacketed fiber.
Item Tested?: Not Applicable (N/A)Physical Condition: Excellent; Working Condition: Fully Functional1 | 8x 8x8 | 1
