mountable display module with 2 seven segment display

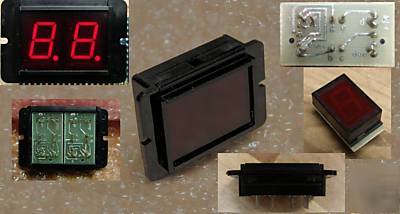

Seven Segment Displays in an Assembled Module. This 2 display module is designed for an opening of 1-1/8 inch by 2-1/4 inch opening. It is old stock that has never been used. Each display is tested. No specifications can be found but works with a 5 VDC current limited supply using 150 ohm - 330 ohm resistors. Each 7 segment + DP is Common Anode and the pins are identified by the picture above. They require an encoder/driver circuit based on the 7446/7447 TTL or newer technologies such as PIC processors. This unit is great for clocks and other home brew circuits. Same pinout as a 16 pin DIP socket. << MAKE OFFER FOR MULTIPLE ITEMS! >>
The 3 display module is also available.
