Tektronix A6303 ac/dc,split core current probe

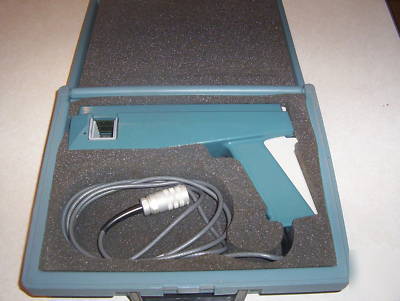

Extremely Rare, and very hard to find especially in very good condition! Comes with case and Manual
AC/DC, Split Core Current Oscilloscope Probe, 15MHz, 500A W/ Case
Works like a Champ....No Issues at all perfect condition! Like New.
* 100 Amps Continuous / 500 Amps Peak
* Up to 0.83 in. Conductor Diameter
Tektronix A6303 measures higher amplitude, lower frequency currents. It clips onto conductors up to 21.1 mm (0.83 in.) in diameter. Its frequency range is DC to 15 MHz. It will measure continuous currents up to 100 A and peak currents up to 500 A, as long as the amp*second product of 10,000 A* s is not exceeded.
Tektronix A6303 are also compatible with the 11A16 2-CH Current Probe Amplifier for the 11000 and DSA Series oscilloscopes. With the 11A16, A6303 is rated for for 52.5 A.
Safety: Certified to probe standard UL3111-2-032, CSA1010.2.032, EN61010-2-032, IEC61010-032.
