Star swiss cnc auto screw machine, model stm-32

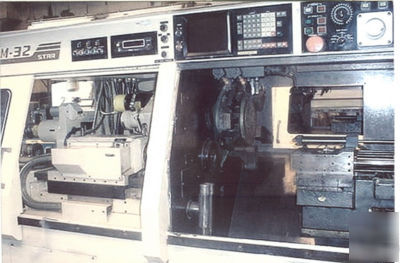

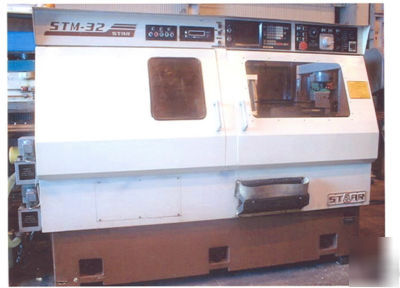

STAR Swiss CNC Auto Screw Machine, model STM-32, S/N 005708, New 1982
Main spindle speeds 45 to 4,000 RPM
Cutting feed rates X&Z axis 157.5 IPM
Min. input increments X&Z axis 0.0001
Min. input increments C axis 0.001
Fanuc 6T-B CNC Control with CRT
(4) End working universal stations
(6) Rotating tool units can be installed
for drilling, milling: 500/1000/2000 RPM
for tapping, slotting: 106/212/424 RPM

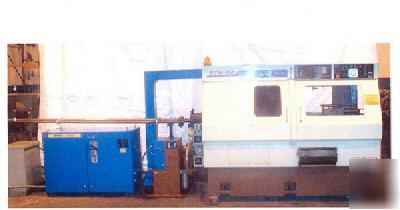

Thuro Hydraulic Barfeed, 12 bar length
10 HP Main Motor ( 30 min.), 7.5 HP Continuous
