New national pxi-6704 dc analog output 16-bit card

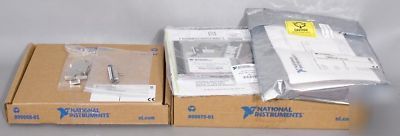

NEW National Instruments PXI-6704 Analog Output Card and 68-Pin Connector Block Screw Terminal
This unit is brand new in the original factory packaging. It is guaranteed to be in working condition.
List Price for the Card is: $1,599.00 NEW from National Instruments.
List Price for the Connector is: $99.00 NEW from National Instruments.
Total List Price is: $1,698.00
The Kit's Part Number Tag Reads:
Description: PXI-6704, DC Analog Ouput and NI-DAQ
* Card Part Number: 185825D-01, NI PXI-6704 CCA
* NI-DAQ Documentation + SW Kit, Version 6.9.1, Multilingual, Part Number: 778052F-01
* 68 Pin Mating Conn/Shell, Part Number: 776832-01
Link to the Datasheet: National PCI & PXI-670x Series Card Datasheet
Link to the Manual: National Instruments PCI & PXI-6704 Card Manual
* 16 voltage ouputs and 16 current outputs
* 10 V or 0.1 to 20 mA range
* User-defined power-up states
* 8 (5 V TTL/CMOS) digital I/O lines
* NI-DAQmx driver software that simplifies configuration and measurements
The NI PXI-6704 is a 16-bit static-update analog output module. It provides 16 voltage outputs and 16 current outputs that you can use at the same time independently, as well as eight digital I/O lines. You can set each output independently from 10 V or 0 to 20 mA.
Operating System / Target: Windows, Real-Time, Linux
Analog Output Specifications:
Maximum Voltage Range: -10.1 to 10.1 V
Minimum Voltage Range: -10.1 to 10.1 V
Maximum Current Range: .1 to 20 mA
Minimum Current Range: .1 to 20 mA
Maximum Input Range: 0 to 5 V
Maximum Output Range: 0 to 5 V
Input Current Flow: Sinking, Sourcing
Programmable Input Filters: No
Output Current Flow: Sinking, Sourcing
Current Drive (Channel/Total): 16 mA / 128 mA
Supports Programmable Power-Up States?: No
Supports Handshaking I/O?: No
Counter/Timers Specifications:
* Picture 3 - Connector Parts
* Picture 4 - Software & Manuals
