Lantek 6 cable tester & certifier by ideal ~ used

LanTek 6 Cable Tester & Certifier by Ideal ~ USED
LanTek 6 Cable Tester & Certifier by Ideal
* LanTek 6 Dis -P/N: 0012-00-5700 - S/N: 0307101
* Lantek 6 Rem - P/N: 0012-005701 - S/N: 0307120
* 4 NiMH Battery Packs (take a charge but no guarantees for how long they will hold a charge - may need replacing, but will get you started)
* Dual Bay Rapid Battery Charger with power supply
* 2 Headsets with Microphones for talking though units remotely with soft carry case
* Hard Shell Carry Case (19.5" X 13.5" X9.5") (please see pictures - this case arrived to us damaged on one corner - does not affect use of case or condition of units inside)
* Frequency Range ~ LANTEK6: 1-350MHz (Up to Category 6/ISO Class E for Gigabit Ethernet)
* Fa for 10Gig+ Ethernet and Broadband over Twisted Pair)
* Length (50-100 cable) 0 2000 ft 1 ft (3% + 3 ft)
* Delay 0 8000 ns 1 ns (3% + 1 ns)
* Average Impedance 35 180 0.1 (3% + 1 )
* Capacitance (Bulk) 0 100 nF 1 pF or 3 dig (2% + 20 pF)
* Capacitance 0 100 pF/ft 0.1 pF (2% + 1 pF)
* DC Loop Resistance 0 200
* Attenuation 1 MHz 1 GHz , Level III/IIIe/IV accuracy (ETL Verified)
* NEXT 1 MHz 1 GHz, Level III/IIIe/IV accuracy (ETL Verified)
* Return Loss 1 MHz 1 GHz, Level III/IIIe/IV accuracy (ETL Verified)
* ELFEXT 1 MHz 1 GHz, Level III/IIIe/IV accuracy (ETL Verified)
* Range Resolution Accuracy Standard Test Compliance ANSI/TIA/EIA 568B, CAT7/6a(Draft)/6/5e/3, ISO-F/Ea(Draft)/E/D/C, AS/NZS 3080, IEEE 802.3 Ethernet, EN50173, EN50173.A1
* Cable Types: UTP/ScTP/FTP CAT 3/5e/6/6a(Draft)/7 ISO-C/D/E/Ea/F (Channel and Permanent Link) IBM STP Type 1,2,6 Coax
* Dimensions: (Display and Remote) 10.1 5.0 2.3 , 256mm 127mm 58mm
* Weight: 2.3 lb (1050g) Display, 2.0 lb (914g) Remote, 1.2 lb (548g), Battery 1.2 lb (548g)
* Battery Packs NiMH (rechargeable)
* Typical Operating Life (Battery) 8 hours
The LANTEK family of LAN cable certification testers is designed to test and measure twisted pair, coaxial and fiber-optic cable used for high-speed data communications networks.
The Remote Handset works with the DH (Display Handset) to perform Autotest or individual real time Analyze tests. The RH terminates the cable link and communicates with the DH. When performing measurements, the RH is automatically activated by the DH.
Both the Display (DH) and Remote (RH) Handsets use interchangeable rechargeable NiMH (Nickel Metal-Hydride) battery packs. The DH and RH can be run on battery power for approximately eight hours. Actual battery power times will vary based on factors such as operating time versus standby time, use of the display backlight, and ambient temperature. When the battery is almost empty, the tester displays a warning message. The tester will automatically shut down before testing results are affected. After a brief period of inactivity, the DH and RH automatically power down to save battery power.
* The industry's most capable CAT 6/ISO E hybrid copper/fiber certifier (fiber certifier module available - NOT included).
* Tests applications up to 350MHz, well beyond CAT 6/ISO E draft specifications.
* Brightest color screen in the industry.
* ETL Certified Level III Accuracy.
* Tests applications 550MHz, well beyond CLASS E/Category 6 range of 0-250 MHz
* Worn out adapter leads? Replace the Patch cord Lead, not the adapter
* Wiggling Adapter Connections changing your results? Never again with IDEAL's Adapter Locking System
* Trouble seeing the display screen under fluorescent lights or in direct sunlight? Check out the LANTEK 6 or LANTEK 7 color display screen, the brightest, sharpest display in the industry
You can get further documentation for this unit by clicking on: http:// /products/datacomm/certifiers/lantek.jsp.

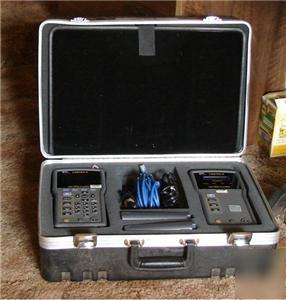

Please refer to the accompanying photographs as these are the actual items you will receive! There is a picture which shows damage on one corner of the Hard Shell Carry Case. That damage was there when we received it and causes no effect to the case or the items inside the case. Feel free to contact us if you have any additional questions.
