Dso-2250 usb-pc digital oscilloscope 100 mhz 250 msa/s
DSO-2250 USB-PC Digital Oscilloscope 100 MHz 250 MSa/s
Hantek DSO-2250 100 MHz Digital PC based Oscilloscope
This extremely portable, lightweight oscilloscope works in conjunction with your Windows based computer to create a powerful 2 channel digital oscilloscope. It uses the PC's USB port to communicate the incoming data to the included software. Your monitor becomes your oscilloscope display. The software lets you do all the things you need to do with an oscilloscope, such as adjusting the vertical voltage reference, and the horizontal time base. This unit is supplied with software CD, probes, USB cable, and manual.

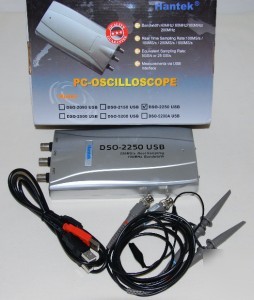

* INCLUDES: 2 x1/x10 (selectable) Probes, USB cable for power and communication, Manual, CD
* USB 2.0 interface, bus powered (self powered hub recommended)
* 250 MS/S real time sampling
* Windows 98/ME/NT/2000/XP/Vista and Windows 7 compatiable
* 23 measurement functions, with PASS/FAIL check
* Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, XY plot
* Waveforms can be saved to text, JPEG, BMP, MS Excel or Word files
* Development available via LabVIEW, Visual Basic, Visual C++, Delphi and C++ Builder support
Hardware Specifications & Additional Information
Yes ... 10 mV/div ~ 5 V/div (x1 probe)
250 MSa/second (1 channel) ... 125 MSa/sec (2 channels)
In stock here in the US, available for immediate delivery! 1 year Warranty
For extended warranties check our our website: mortoncontrols.com
