> 5 x LM338 adjustable voltage regulator sgs thomson 338
5 x LM338 adjustable voltage regulator sgs thomson 338

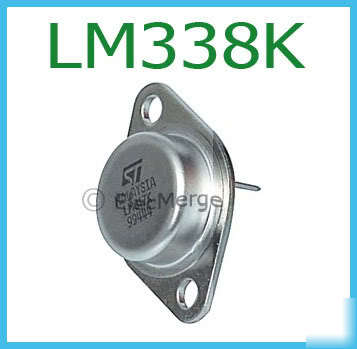

LM338K Adjustable Voltage Regulator
LM338K LM338 Adjustable Voltage Regulator
The LM338 are adjustable 3-terminal positive voltage regulators capable of
supplying in excess of 5A over a 1.2V to 32V
output range. They are exceptionally easy to use
and require only 2 resistors to set the output
voltage. Careful circuit design has resulted in
outstanding load and line regulation comparable
to many commercial power supplies. The LM138
family is supplied in a standard 3-lead transistor
* GUARANTEED 7A PEAK OUTPUT CURRENT
* GUARANTEED 5A OUTPUT CURRENT
* ADJUSTABLE OUTPUT DOWN TO 1.2V
* LINE REGULATION TYPICALLY 0.005%/V
* LOAD REGULATION TYPICALLY 0.1%
* GUARANTEED THERMAL REGULATION
* CURRENT LIMIT CONSTANT WITH TEMPERATURE
5 x LM338K Adjustable Voltage Regulator
* 5 x LM338K ADJUSTABLE VOLTAGE REGULATOR
* LM338K Data sheet & Schemetic
