Photon inc goniometric radiometer adaptor plate

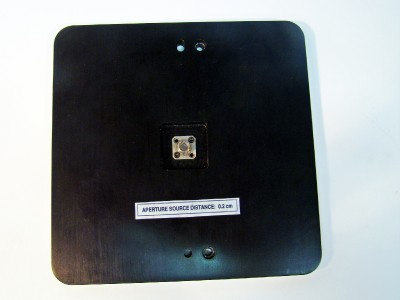

Photon Inc Goniometric Radiometer Adaptor Plate
For Models LD 8900 and LD 8900R
The simplest and most effective way of ensuring that your source is correctly positioned is to use a simple mechanical fixture mounted to the datum surface. This fixture is designed to position, point and secure an FC type fiber optic connector for measurement. The instrument s optical axis is perpendicular to its datum plane and its mechanical fabrication is guaranteed to within 0.2 . The optical axis is centered on a line between the two location pins.
