Omni-spectra 2085-6014-00 back diode detector 2-4 ghz

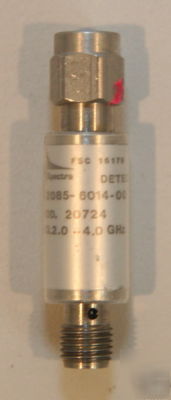

Omni-Spectra 2085-6014-00 Back Diode Detector
Note: Omni-Spectra is now part of M/A-Com/Tyco
Omni-Spectra 2085-6014-00 Specifications:
* Frequency Range: 2.0-4.0 GHz
* Open Circuit Voltage Sensitivity (mV/mW): 840 Typ., 750 Min.
* Tangential Sensitivity (-dBm): 53.5 Typ., 52.5 Min.
* Output Capacitance Typical: 18 pF
* Video Resistance: 80 Ohms Nominal
* Maximum Power: 40 mW CW or 3 erg spike
* Temperature Stability: 1 dB over operating range of -65 C to +100 C
Typical Extended Band Performance:
* Frequency Range: 1.4-5.0 GHz
* Open Circuit Voltage Sensitivity Typical (mV/mW): 500
* Tangential Sensitivity (-dBm): 50.0
