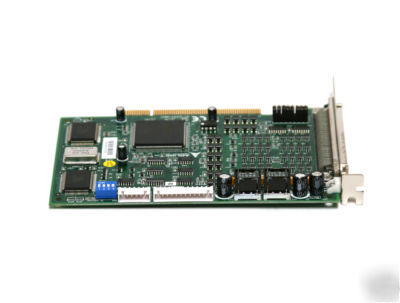

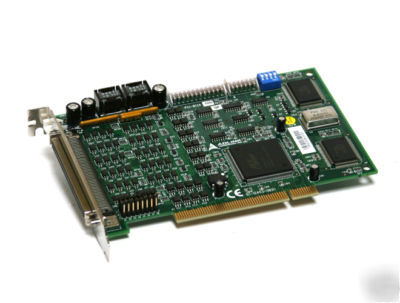

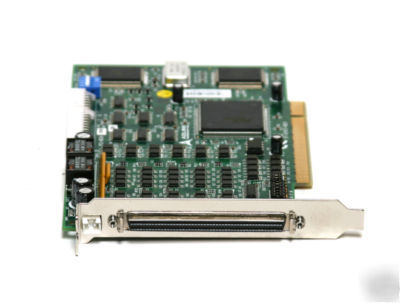

Adlink pci-8134 stepper servo motion control pci card
Adlink PCI-8134 is a 4-axis motion control card based on PCI bus. The PCI interface provides plug-andplay feature that is the key to easy maintenance. The maximum number of cards in one system is 12 cards with capability of controlling 48 motors. The PCI-8134 can generate high frequency pulse train. The frequency of the pulse train controls the motor speed; the number of pulse controls the motor position. The differential input/output signals reduce noise interference. The command output options, including DIR/OUT mode and CW/CCW mode, provide an easy access to various stepper or servo motor drivers. The motion control ASIC performs versatile trajectory planning ability. The acceleration and deceleration time are programmable. The S-curve helps to avoid mechanism vibration. The hardware linear interpolation between two axes is powerful to reduce software computation effort.
* 32-bit PCI bus, plug & play
* Pulse output rate up to 2.4 MHz
* Pulse output options: OUT/DIR, CW/CCW
* 2 axes linear interpolation
* Programmable acceleration and deceleration time
* Trapezoidal and S-curve velocity profiles
* Easy interface to any stepping motors, AC or DC servo, linear or rotary motors
* 28-bit up/down counter for incremental encoder
* Semiconductor front & back end equipment
* TFT/LCD manufacturing equipment
* Solar cell manufacturing equipment
* Electronic assembly and testing equipment
* Automatic optical inspection equipment
* Flight/Vehicle simulation in military applications and video games
* Cutting or carving machinery
* Pulse Output Rate: 0.03 pps to 2.4 Mpps programmable
* Pulse Command Output: DIR/OUT, CW/CCW
* Max. Acceleration Rate: 91 Mpps2
* Speed Resolution: 16-bit
* Encoder Input Rate: 2.4 MHz @ 3 M cable
* Encoder Counter Resolution: 28-bit
* Positioning Range: -134,217,728 to +134,217,727 pulses (28-bit)
* Max. Number of Cards in One System: 12
* Motion Interface I/O Signals
* I/O Pin: Differential and 2500 VRMS optically isolated
* Incremental Encoder Signals Input Pin: DIR/OUT, EA/EB
* Encoder Index Signal Input: EZ
* Mechanical Limit Switch Signal Input Pin; EL, SD, and ORG
* Servomotor Interface: I/O Pin INP, ALM, ERC
* Pulser Signal Input: PA and PB
* Simultaneous Start/Stop Signal I/O Pin: STA and STP
* For more details, please visit:
* http:// /PD/marketing/Datasheet/PCI-8134/PCI-8134_Datasheet_10.pd
* Adlink PCI-8134 Stepper & Servo Motion Control Card
