> Astrosyn stepper motor 5 volts / 7.5 degrees / 3.6 ohms
Astrosyn stepper motor 5 volts / 7.5 degrees / 3.6 ohms
AstroSyn Stepper Motor - Huge!

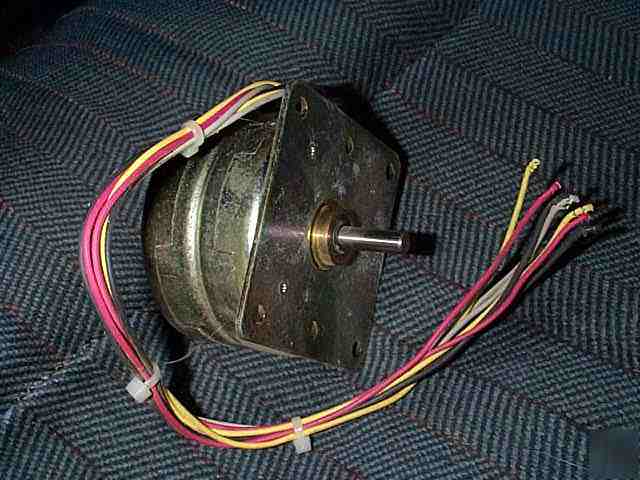

(Actual Picture of one in the lot, Click pix to Super Size!)
This is a monster Stepper Motor!, Measuring almost 3" across and 1.5" deep, the shaft is 1" long and 6mm wide with a notch on one side. It has four windings connected to 8 wires so you can do series or parallel operation. Rated 5V, 3.6 ohms per coil and 7.5 degree step angle. Made by Minebea Co. LTD. The motors are new but had some rough storage so there are some scuff marks on them, see the pix below. Shafts are free and ball bearing mounted (not bushings like cheap motors). Full model numbers is 28BB-H151-11.
Click on Pix to Super Size it!
