Apex PA12A / PA12 power op amp amplifier to-3-8

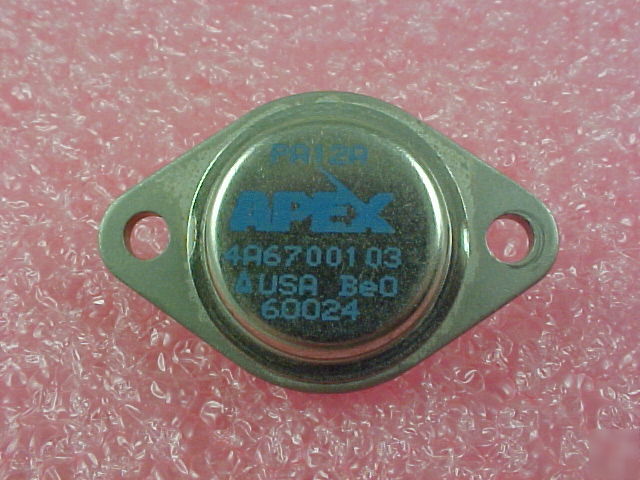

PA12A / PA12 Power Op Amp Amplifier TO-3-8
LOW THERMAL RESISTANCE 1.4 C/W
CURRENT FOLDOVER PROTECTION NEW
HIGH TEMPERATURE VERSION PA12H
EXCELLENT LINEARITY Class A/B Output
WIDE SUPPLY RANGE 10V to 50V
HIGH OUTPUT CURRENT Up to 15A Peak
The PA12 is a state of the art high voltage, very high output current operational amplifier designed to drive resistive, inductive and capacitive loads. For optimum linearity, especially at low levels, the output stage is biased for class A/B operation using a thermistor compensated base-emitter voltage multiplier circuit. The safe operating area (SOA) can be observed for all operating conditions by selection of user programmable current limiting resistors. For continuous operation under load, a heatsink of proper rating is recommended. The PA12 is not recommended for gains below 3 (inverting) or +4 (non-inverting). This hybrid integrated circuit utilizes thick film (cermet) resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is hermetically sealed and electrically isolated. The use of compressible isolation washers voids the warranty.
