Ando AQ4321D tunable laser source +7 dbm ~ 81680A

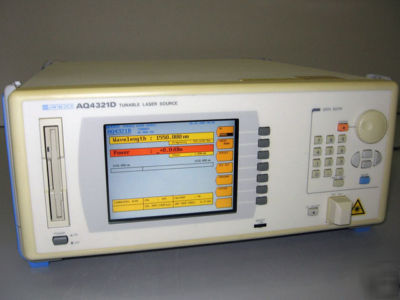

Ando AQ4321D Tunable Laser Source +7 dBm
The Ando AQ4321D Tunable Laser Source is specially designed for DWDM applications, especially for the evaluation of optical components and DWDM systems. These tunable laser sources provide wide wavelength tuning range with great accuracy ( 10 pm at 1520 nm). High output power, high SMSR and stability are excellent for the complete characterization of optical components. It has the following specifications:
* Wavelength range: 1520 to 1620 nm
* +6 dBm or more, 1560 to 1600 nm
* +5 dBm or more, 1540 to 1620 nm
* +3 dBm or more, 1520 to 1620 nm
