26800836 | jet 8 x 36 1PH vertical milling machine

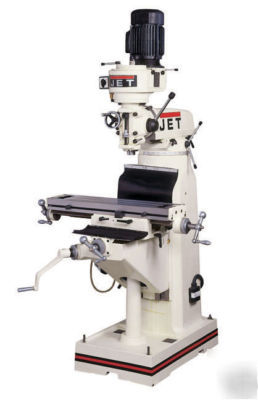

26800836 | Jet 8 x 36 1PH Vertical Milling Machine
* Large diameter quill is chromed.
* High precision spindle bearings.
* Table, knee and saddle feature a lock.
* Graduated scale on column.
* Precision ground dovetail ways.
* Equipped with fine downfeed.
* Size of table .. .. 7-7/8 x 35-3/4
* Cross travel . 9-1/2
* Long travel .. ... 25-1/4
* Knee travel . 14
* Spindle taper .... R-8
* Number of spindle speeds .. 5
* Range of spindle speeds 240-1,550 RPM
* Spindle travel .... 5
* Max. distance spindle to table .. 14
* Max. distance spindle to column ... 15-3/4
* Motor .. 1-1/2 HP, 1
* Voltage .. 115V/230V
* Prewired . .. 115V
* Weight .. . 1,544 lbs.
The manufacturers item number is 690036
