P7380A P7380 P7360A P7380SMA P7508 P7313 P7350A

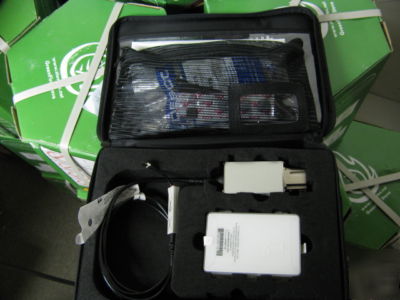

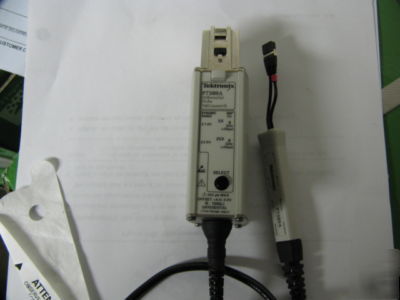

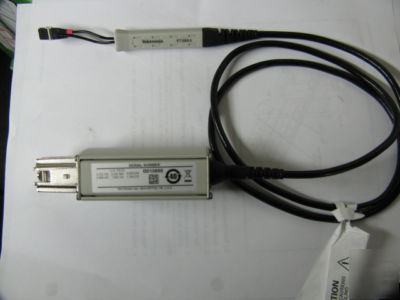

P7380a differential probe, good condition, tek warranty expires dec. 2010. p7313 also available.
Z-Active Differential Probe Family
P7313 P7380A P7360A P7340A
* >12.5 GHz Bandwidth (P7313, Typical)
* >8.0 GHz Bandwidth (P7380A, Typical)
* >6.0 GHz Bandwidth (P7360A, Typical)
* >4.0 GHz Bandwidth (P7340A, Typical)
* Extended Linear Dynamic Range
* 1.25 Vp-p at 5x Attenuation (P7313)
* 4 Vp-p at 25x Attenuation (P7313)
* 2 Vp-p at 5x Attenuation (P7380A, P7360A, P7340A)
* 5 Vp-p at 25x Attenuation (P7380A, P7360A, P7340A)
* Zmin >200 out to 10 GHz (P7313)
* Zmin >290 , 4 GHz to 8 GHz (P7380A, P7360A, P7340A)
* Make Differential or Single-ended (Ground-referenced) Measurements*1
* Handheld Probing with Variable Spacing and Compliance

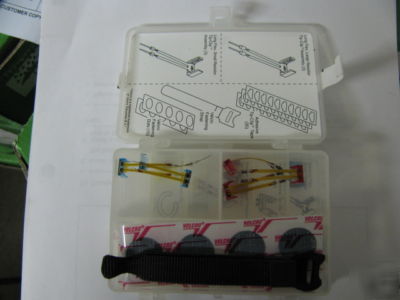

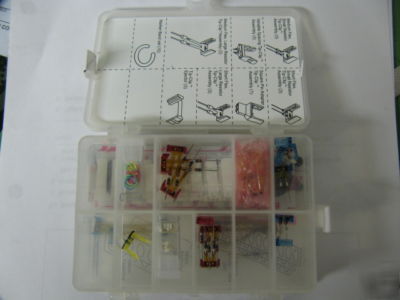

* Interchangeable Tip-Clip Assemblies
* Connect to a Variety of Devices
* Examples Include, but are not Limited To:
* PCI-Express I and II, Serial ATA II, USB 2.0, DDRII, DDRIII, Fireware 1394b, Rambus, XAUI
*1 For details, please see application note 60W-18344-0, Making Single-ended Measurements with Differential Probes.
Z-Active Probing Architecture Leads the Way for High-speed Probing Applications
Tektronix has created a revolutionary Z-Active probe architecture that sets the industry benchmark for signal fidelity. Tektronix active probe architecture preserves high bandwidth while providing improved connectivity with low loading. The Z-Active architecture is a hybrid approach composed of a distributed attenuator topology feeding an active probe amplifier.
The Z-Active probes use a tiny passive probe tip element that is separate from the amplifier, extending the usable reach of the probe. In traditional active probes, adding this much length can introduce signal fidelity problems. However this architecture maintains high DC input resistance and presents a higher AC impedance than previous probe architectures. It accomplishes this while providing significant length between the probe body and the probe attachment point to the DUT. This architecture provides the best of both worlds: high DC impedance like existing active probes and the stable high-frequency loading of Z0 probes.
You can be confident in the signal fidelity of your measurements because the Z-Active architecture provides:
Many of today s logic signals and serial bus signals require the capability to measure up to several volts peak to peak. These voltage levels may easily be viewed with the Z-Active architecture probes (P7380A, P7360A, and P7340A) with the extended linear dynamic range. With a 2.0 Vp-p linear dynamic input range at the 5x attenuation setting, you can accurately measure DDR II and III, Firewire 1394b, and PCI-Express I and II signals at reduced noise levels. In addition the 25x attenuation setting s linear dynamic input voltage range can be used up to 5.0 Vp-p for accessing even larger signal swings found during transition times.
The Z-Active probe design allows the probe to easily switch between soldered, handheld, or fixtured applications.
The combination of the Z-Active architecture and the Tip-Clip assemblies provide superior signal fidelity at a cost-effective price. The inexpensive Tip-Clip assemblies enable full-performance solder connections at a very low price per connection. Over the life of a probe this can add up to significant savings in the cost of operation.
