New jet ghb-1440A bench lathe w/stand 321156K

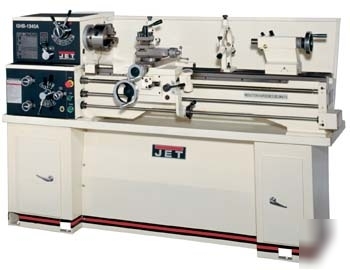

JET GHB-1440A Bench Lathe With Stand
* One of the most popular JET lathes now comes with an enclosed gear box
* Enclosed gear box design provides smooth, quiet operation
* Gear box gives wide inch threading and feed capabilities with no gear changes
Spindle Mount D1-4 Spindle Taper W/ Sleeve MT-5(MT-3) Number Of Spindle Speeds 8 Range Of Spindle Speeds (RPM) 70 - 2,000 Range Of Longitudinal Feeds (IPR) .0036 - .0325 Range Of Cross Feeds (IPR) .0012 - .0345 Number Of Inch Threads 40 Range Of Inch Threads (TPI) 4 - 112 Number Of Metric Threads 27 Range Of Metric Threads 0.2 - 6 Taper In Tailstock Spindle MT-3 Motor 2HP Prewired 230V Swing Over Bed 14" Swing Over Cross Slide 8" Swing Through Gap 19" Length Of Gap 8" Distance Between Centers 40" Spindle Bore 1-3/8" Max Tool Size 5/8" x 5/8" Compound Slide Travel 2-11/16" Cross Slide Travel 6-5/16" Carriage Travel 35" Tailstock Spindle Travel 3-3/4" Steady Rest Capacity 2-5/8" Follow Rest Capacity 2-3/4" Width Of Bed 7-3/8"
* GHB-1440A Bench Lathe with Stand - 321156K
