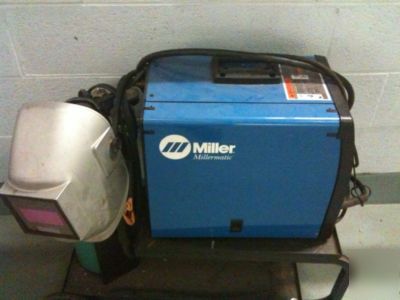

Miller electric millermatic 175 DVI2 mig welder
Miller Electric Mfg Co Millermatic DVI2 MIG Welder, 1- Phase, 30 - 175 A - 951067
The Millermatic DVI2 features Miller's exclusive Multi-Voltage Plug (MVP) which allows you to plug into either 115 or 230 V power. Just choose the plug that fits your receptacle and attach it to the power cord - no tools required! Angled, dual-gear-driven, cast aluminum drive system features no-tool, quick-change reversible drive rolls and easy-to-set, scaled tension knob. Six taps provide welding range of 30 - 175 Amps with superior performance throughout its operating range. Welds materials from 22 gauge up to 3/8 in on 230 V power, and 22 gauge up to 3/16 in on 115 V power. Patent-pending EZ-Change Low Cylinder Rack allows operators to easily roll cylinders on and off of rack - no need to lift cylinders. Thermal overload protection shuts down unit and activates over temperature light if airflow is blocked or duty cycle is exceeded. Automatically resets when fault is corrected and unit cools. Less weld cleanup with Active Arc Stabilizer - patented Miller design provides excellent starts proven superior to the competition.
* Package includes Spoolmate 3035, dual cylinder rack, regulator, gas hose, and diverter valve switch kit.
* 10 ft (3 m) power cord and plug
* Argon mix regulator/flow gauge with hose
* Factory-installed running gear with EZ-change Low Cylinder Rack
* .030/.035 in (0.8/0.9 mm) reversible drive rolls
* Set-up and operation interactive CD
* Light Industrial Applications:
* Vocational/Technical Schools
* Input Power: Requires 1-phase power
* 230 V operation: 150A at 23 VDC, 40% Duty Cycle
* 115 V operation: 90A at 18 VDC, 20% Duty Cycle
* Welding Amperage Range: 30 - 175 Amps
* Wire Speed: 50 - 700 IPM (1.3 - 17.8 m/min)
