Square d i-line main breaker panelboard 600AMP 480Y/277
I-Line Panel Board Cat. No. 12211140730090001
this may also be considered an HCW3686-6M
600Amp 3 Phase 4 Wire 480Y / 277 Vac Series E1
With Enclosure ( 42 x 86 x 10 )
Panel List price $4560.00 Breaker List Price $4742.00

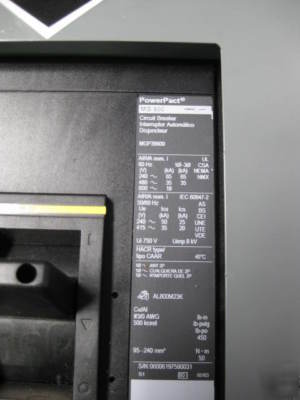

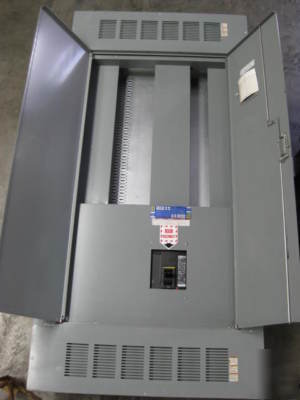

This 600A Main Breaker Type PanelBoard is in excellent condition both externally and internally. This Panel was updated with PowerPact MG 600 Main Breaker Cat No. MGP36600 before being removed from service. This breaker has interrupting ratings of 240 - 65kA, 480 - 35kA, and 600 - 18kA. The unit was installed in an environmentally controlled room and is very clean.
CATALOG NUMBER 12211140730090001
This Panel will hold the following I-Line Breakers with the following Frames (and those comparable):
- FA, FH, and FC, -KA, KH, and KC, LA, LH, and LC
