QL200 pic mcu development board kits usb programmer lcd
QL200 PIC MCU Development Board kits USB Programmer LCD
QL200 development board (inc.DS1302+24C02+93C46)
QL200 series dupont thread expansion connection X20pcs

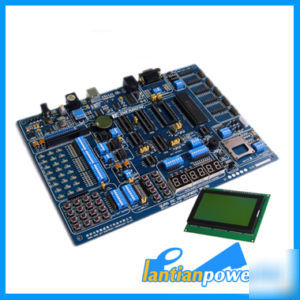

QL200 is an integrated demo system for study and development of PIC Microcontroller, which is provided with four functions of experimental instrument, programmer, simulation interface and ICSP download cable. Enclosed with control CPU and combined with programming software which has independent intellectual property rights, the system is able to support over 90 percent of the experiments and development practices of PIC Microcontroller.
Abundant on-board resources: LED, digital tube, key-press, keyboard matrix, character LCD, graphic LCD, A/D converter, D/A converter, SPI & IIC communication, USART serial communication, DS18B20 digital temperature measurement, DS1302 clock, infrared remote control encoder, voice program and etc.
Full combination of PIC chips available for programming supporting and experiment development: on-board chip socket for PIC Microcontroller of 8PIN, 14PIN, 18PIN, 20PIN, 28PIN, and 40PIN, on-board PIC10 series, PIC16F57 chip socket, jumper for selection of various oscillation modes, auto-replacement of crystal oscillation of different frequency.
Open modular design: All modules can be on/off controlled by DIP switch. Each module is designed to connect to I/O port of Microcontroller. Connection of module with any port of Microcontroller is conveniently achieved through dupont thread. Connection to preset port is available by using DIP switch without dupont thread. All I/O ports are open externally with output socket. Expansion is easily accomplished.
Perfect examples: Each module is equipped with at least one detailed example from easy ones to complicated ones. Beginners are enabled to master all types of programming step by step.
Powerful on-board programming system: Programming over 90 percent of PIC Microcontroller's. Enclosed with ICSP download cable. Direct ICSP programming for Microcontroller of external target board.
On-board simulation debugging interface: direct connection to ICD1/ICD2/MCD1/MCD2 in circuit debugger.
Powerful programming control software:
Programming control software has entire independent intellectual property rights and covers all operating functions of programmer, with the following characteristics
1.Compatible for operating systems including Windows 98, Windows 2000/NT, Windows XP and Windows 2003;
2.Programming interface in English and Chinese, on-line help system, convenient for user operation;
3.Programming counting function of software;
4.Serial number auto-increment function;
5.Voice indication during programming;
6.Auto-inspection of programming hardware, auto-inspection of software and setup of programming hardware during start-up, operation without manual setup;
7.Monitoring of programming data; Based on check summing, available to find immediately if programming data is changed or not. Formula of checksum is subject to definition of Microchip;
8.Read the content in chip programming area easily;
9.Program supports *.HEX or *.BIN files;
11.Auto-protection of calibration value of chip clock against erasion;
12.Directly program the BIN files obtained from decoding of Microcontroller without making any setup.
In addition to above characteristics,many humanized functions are designed in the development of QL200,For examples:
Over-load protection function: When there is over load in the demo system, the protection system will automatically start to avoid any damage of elements. After fault is corrected, the board will recover to work.
Auto-load of changed file function:To achieve seamless integration with MPLAB IDE and other development software, the changed current target code is inspected automatically and then is transferred into the updated file automatically. This function offers great convenience for study and development, which avoids the trouble in repeating load of target code.
Function to identify the figuration bit and EEPROM in the file automatically: When we write the configuration bit information and EEPROM data in the program, otherwise setup is not needed for programming. This function saves much time for regular change in program debugging and avoids the setup requirement for each program change.
On-board CPU on-line upgrade function: It is available to download the updated programming software and run to upgrade hardware, which will upgrade on-board CPU to the updated version so that it can support more new devices
QL200 can support the following devices for programming and experimental development:
