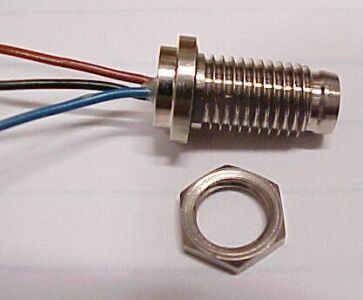

Lot 10 turck picofast receptacles, mfs 3F-4.5IN/CS10987
The Turck part number (MFS 3F-4.5IN) breaks down as follows:
F: Rear Mount (front thread and locknut)
4.5IN: Conductor Length (in inches)
Mates with 3-Pin Snap Lock Female Cordsets IEC IP 67 Protection
Contact Carrier Material: Nylon or PUR
Contact Material: Gold Plated Brass
Housing Material: Nickel Plated Brass
Rated Voltage: 60 VAC / 75 VDC
Conductor Insulation Material: PVC
Number of Conductors: 3 x 24 AWG
Temperature Range: -30C to +80C (-20F to +176F)
Protection Class: Meets NEMA 1,3,4,6P and IEC IP67
(14 to 21) lots: Three pounds
(22 to 29) lots: Four pounds
(30 to 37) lots: Five pounds
