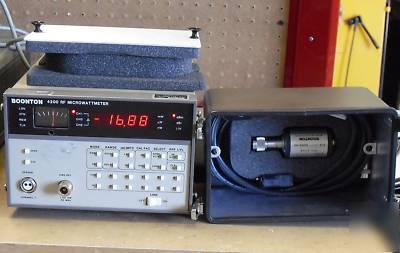

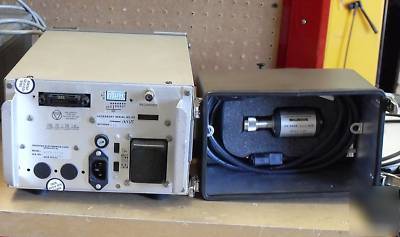

Boonton 4200 rf microwattmeter w/sensor - nist cert
*Frequency Range, 100 kHz to 100 GHz (sensor dependent)
*Power Range 0.1 nW (-70 dBm) to 5 W (+37 dBm) sensor dependent
*Dual Sensor Simultaneous Power Measurements (optional)
*Stored Calibration Data for up to 8 Sensors - comes with one 6E Sensor
*Frequency Range: 100 kHz to 100 GHz, sensor dependent.
*Power Range: (Display calibrated in mW, WW, nW, dBm, and dB relative to selected reference); -70 dBm to +37 dBm (0.1 nW to 5W), sensor dependent
*Source: Internal 50 MHz oscillator with Type N female connector on front panel
*Calibration Factors: 3.0 dB to -3.0 dB range in 0.01 dB steps
*Ranging: Autoranging plus hold on range
*Setting Time: Diode and millimeter wave sensors, typically 0.2 to 0.5s except 1.35 to 2.5s on the lowest range. Thermocouple sensors, typically 0.5 to 6s
*Watt Mode: 10 volts full-scale, proportional to indicated power over each range
*dB Mode: 8 volts equivalent to 0 dBm. Sensitivity of 1 volt per 10 dB change over the entire dB range of sensor
*Display: 4 digit LED, 3 digit display of power, 4 digit display of dB with 0.01 dB resolution. Auxiliary analog display, uncalibrated, proportional to recorder output
*Limits: Entered through front panel in dB only, operable in both dB and power modes
*Annunciators: LEDs indicate mW, W, nW, dBm or relative dB (dBr); use of channel 1 (CH1), channel 2 (CH2, option -03) and channel 3 (CH3 = CH1 - CH2 in dB); out of dB limits; and condition of GPIB activity (LSN, ATN, REM, TLK, option -01B)
