> Ferrari hinge 1/2" overlay ES51079BGG 10 hinges

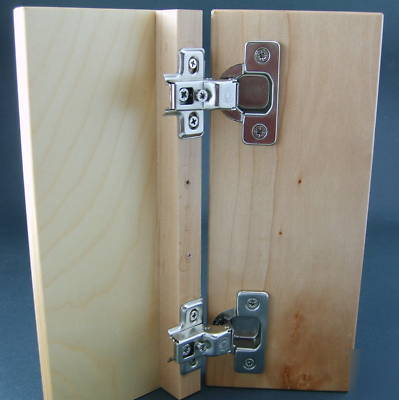

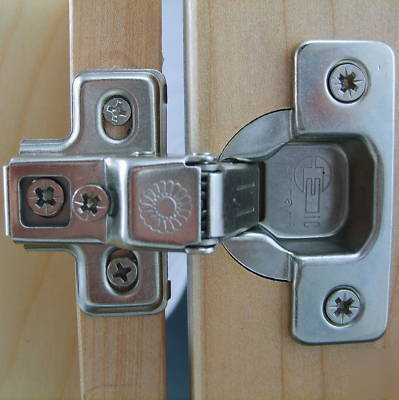

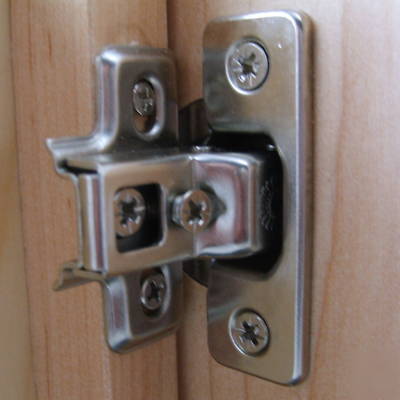

Ferrari hinge 1/2" overlay ES51079BGG 10 hinges
Includes: 4 #7x5/8" flat head mounting screws per hinge
Sale is for 10 hinges with mounting screws
3. Vertical adjustment slotted holes on face fram
4. Dual pivot provides tighter door gap than other single pivot hinges
6. Mounts with 4 #7x5/8" flat head screws (Screws Included)
7. Requires 35mm x 12 mm hole bored in the door
8. Allowable drilling distance for 35mm hole is 3 to 5 mm from edge of door
9. Drill at 4mm and you will hav 1/2" overlay.
10. We also stock the 5/8" overlay model
11. Case discounts available case qty 400
12. This hinge was designed in Italy and produced there for years, production has moved to China for this item.
We stock a complete line of cabinet hardware if you need somtnhing just ask.
