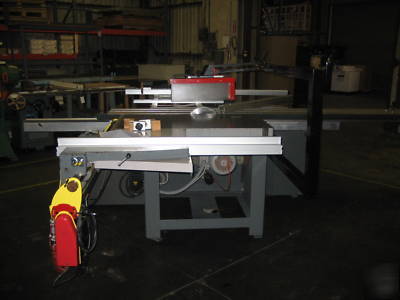

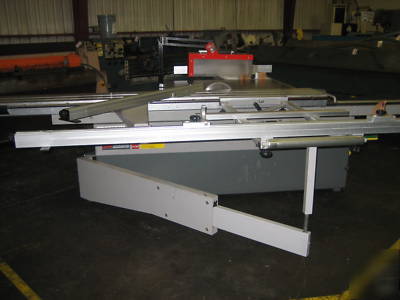

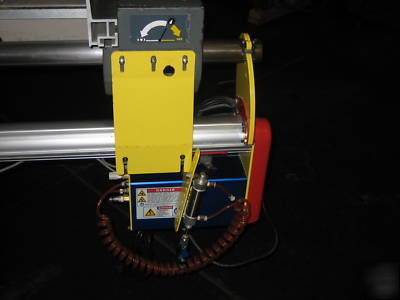

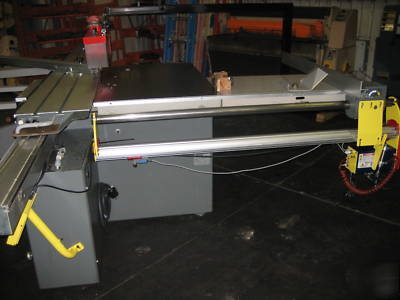

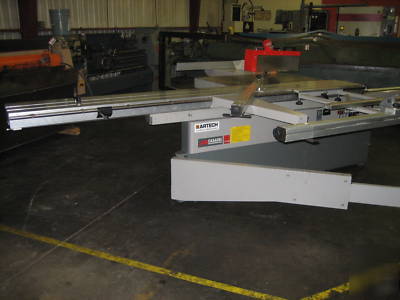

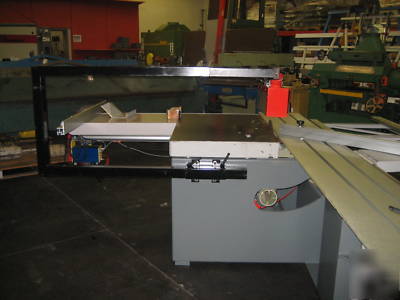

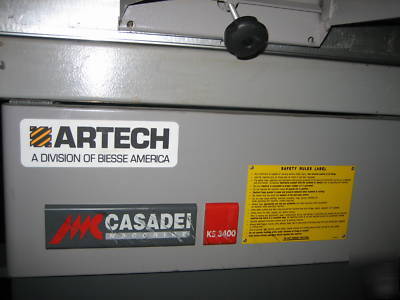

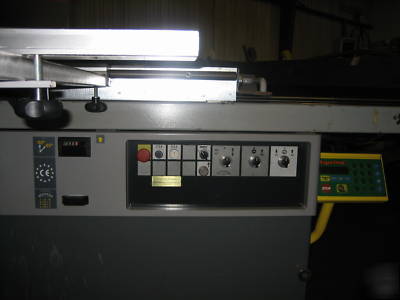

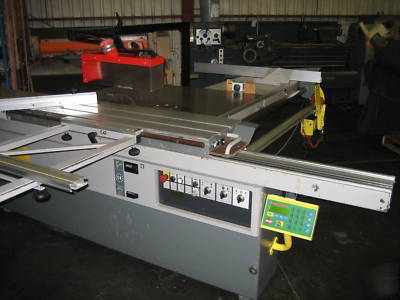

Casadei K3400 12" table saw w/tiger stop
The Casadei KS3400W/Tiger Stop is designed to cut one or more boards by carrying out manual work cycle. A scoring blade is installed in front of the saw blade so that veneered boards can be easily scored.
The blade unit can be titled, therefore allowing cuts ranging from 45 to 90 degrees to be made. The machine is set to make rip and cross cutting in boards made of word or similar material.

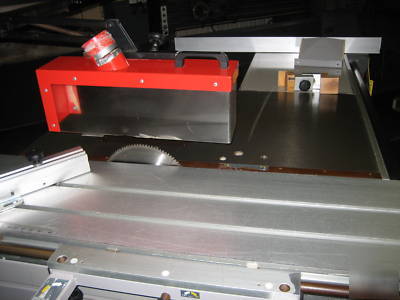

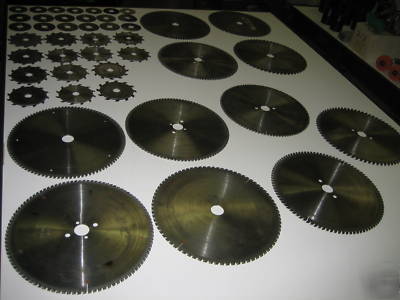

Diameter of standard sawblade w/blade guard- 300 mm
Min. and Max. Scorer blade dia. 120-140 mm
Scorer blade hole diameter 30 mm
Range of Vertical Scorer adjustment 20 mm
Range of sideways scorer adjustment 3 mm
Max. depth of cut at 90 degrees 75 mm
Max depth of cut at 45 degrees 53 mm

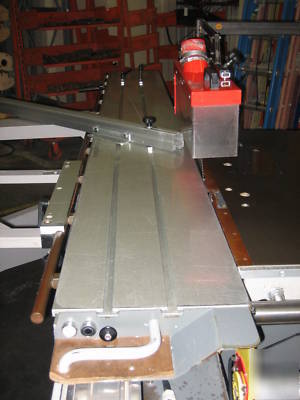

Longitudinal saw carriage stroke 3900 mm
Width between sawblade and fence 1270 mm
Saw arbor speed 2900-4200-4900 RPM
