BT32 portable stripe reader bluetooth wireless . MSR206

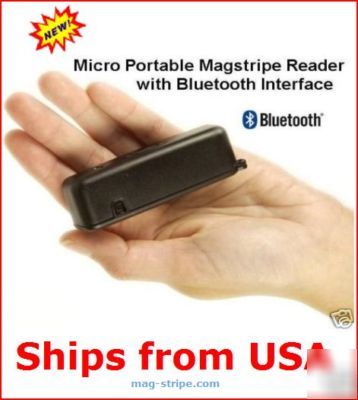

BT32 Bluetooth Wireless Portable Magnetic Stripe Reader
http:// /cliparts/5/7/d/b/1195442352382851478zeimusu_Warning_sign.svg.hi.png
We reserve the right to NOT SELL to anyone that does not meet the following qualifications:
The BT32 is a self-contained wireless data collection system for capturing the information stored on cards with magnetic stripes, and is currently the smallest portable reader in the world. It can store the data from tracks 1, 2 and 3 in its internal non-volatile memory for later downloading to a PC. A timestamp is also stored alongside the data. It features an internal rechargeable Lithium Ion battery, which is recharged using the supplied AC charger. Applications include time and attendance tracking in classrooms or jobsites labour tracking as well as contact management and lead retrieval for trade shows and conferences.
The BT32 is equipped with a 512K Byte internal memory chip, which can store two thousand complete track 1, 2 and 3 swipes before needing to be emptied, after which it can resume operation. Interface specifications are available to qualified developers wishing to integrate the TA series of portable readers into existing software.
The self-contained Bluetooth tm wireless interface allows the BT32 to transmit data to a remote computer or peripheral, either in real-time or in batch mode. This includes not only any Bluetooth equipped PC, but also our CMP wireless printer or standalone sideKick Bluetooth interface. For wireless printing applications, the BT32 can be configured to include user defined text before and after the data and printing multiple copies is directly handled by the device, making it perfect for generating attendance receipts.
Government: Driver Licence, Health Card, Government ID
- Reading and Data Collection of magnetic stripe card complied with ISO 7811/1~6 formats
- Longer swipe length improves swiping accuracy
- Direct Bluetooth wireless interface
- Multiple modes of operation:
- Batch mode (compatible with TA Reader and other applications through wireless COM port emulation)
- Direct to Bluetooth printer (multiple copies supported)
- To stand-alone sideKick interface
- Battery operated, with built-in rechargeable battery
- Battery recharges with included charger in 3 hours or less
- Reads tracks 1, 2 and 3, visual indication of good/bad swipe
- Programmable auto-shutdown preserves battery
- Only valid swipes are logged
- Data retained even if battery removed
- Low battery warning indicates when you should recharge the unit while still allowing you to scan up to 100 cards.
- Battery: built-in 3.7V Lith-Ion rechargeable
- Transport restrictions for battery: none
- Charge time (full charge): 3 hours or less
- Memory: 4 Megabits nonvolatile Flash (512K bytes)
- Swipe length: full 3.25 inches
- Run time: over 20 hours continuous,
- more than 10,000 swipes/charge
- Storage capacity: 2000 three track scans
- Data Format: ISO 7811 compliant media
- Supported tracks: 1, 2 and 3
- Data format for track 3: 5 or 7 bit, autoselect
- Data Verification: LRC on required tracks
- Card thickness: 0.010 to 0.050 inches
- Bit density: 60-265 bits per inch
- Swipe speed: 2-50 inches per second
- Operating temperature: -20 to +50 C
- Interfaces: wireless Bluetooth interface
- Dimensions: 0.8 x 1.0 x 3.25 (20 x 25 x 83 mm)
