Agilent framescope pro N2620A N2620A-001 N2620A-031
* Agilent FrameScope Pro N2620A-001 With License Options:
* VoIP Traffic Generation
* Agilent Wiremap Adapter N2614A-001
* JDSU SFP 4GB Shortwave 850
* ScopeData PRO II Test Software
Agilent FrameScope PRO Handheld Network Analyzer / Gigabit Ethernet Troubleshooting and RFC2544 Performance Tester

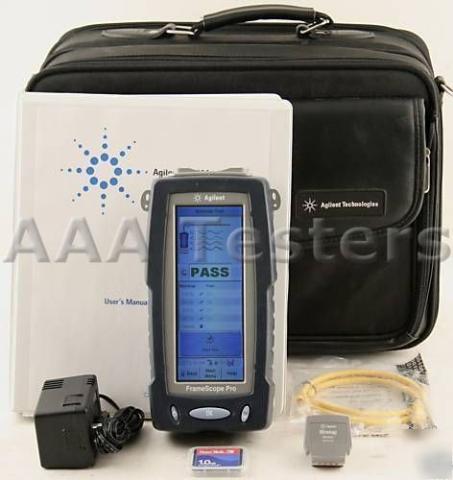

Includes Agilent Wiremap Adapter N2614A-001, Carrying Case & Full Accessories!
The FrameScope Pro is Agilent s handheld 10/100/1000 Mbit/s Ethernet deployment and troubleshooting tool. With the FrameScope Pro, technicians deploying Ethernet in Metro networks now have a fast, efficient and very cost effective test solution for measuring bandwidth at line rates from 1 Mbit/s to 1 Gbit/s.
The FrameScope Pro s color touch screen and online manuals make it very easy to use and the predefined performance test suites allow the technician to runs tests by pressing a single button.
The FrameScope Pro also has a complete toolkit for testing enterprise networks: Agilent's unique Autotest will measure the performance of network resources and services using the same operations that an end user would execute, and then present detail on each operation and compare the measured performance against predefined, yet customizable performance metrics.
* Supports 802.3z-compliant 10/100/1000BASE-T copper and 1000BASE-SX/LX/ZX gigabit fiber SFP interfaces.
* RFC 2544 performance benchmarking verifies throughput at full line rate on both copper and fiber Ethernet interfaces at speeds from 1 Mbit/s to 1 Gbit/s.
* Autotest application performance testing allows for quick isolation of protocol, configuration and resource performance problems.
* Automatic Network Discovery simplifies use and documents network resources and stations
* Remote control via any web browser allows troubleshooting, monitoring, and reporting from central office, eliminating costly dispatches
* Configurable VLAN and QoS settings
* Full-screen, color LCD displays clear and complete results
* Touch-screen interface and online manuals enhance ease of use.
The FrameScope Pro automatically surveys the network and displays all devices in a switched network, giving support staff instant visibility into the IP and IPX devices on different subnets, along with their MAC addresses, Network addresses, and names.
Quickly Diagnose and Troubleshoot Network Problems
With just a few clicks, FrameScope Pro allows you to identify 10/100/1000 Mbit/s Ethernet utilization, broadcasts, collisions and errors, or pinpoint incorrectly assigned subnet masks, misconfigured servers, and duplicate IP addresses.
RFC 2544 Performance Benchmark Testing From the People Who Wrote the Book of Performance Testing
The FrameScope Pro is a powerful Ethernet deployment tool capable of throughput, latency, back-to-back frames and frame loss measurements for SLA verification and performance testing. It uses a standardized point-topoint testing method defined by RFC 2544. The test results can be stored on the CompactFlash card or viewed and printed via the remote interface.
Automated and Simplified Network Service Testing and Pre-Qualification
FrameScope Pro Autotest uses an innovative technique to objectively measure and benchmark the performance of network application servers, and produces detailed reports on the performance metrics. This unique feature is useful for both troubleshooting and network prequalification.
Configurable Line Rates from 1 Mbit/s to 1 Gbit/s
Complete network troubleshooting tool kit
FrameScope Pro contains a complete arsenal for troubleshooting tools from Ping and Trace Route to traffic generation and statistical analysis of the traffic breakdown.
Network security is about knowing who is accessing the network and what type of traffic they are generating. Using the Network database rogue stations can be found and identified.
As technology advances, FrameScope Pro is ready. The compute engine and operating system allow for many future enhancements and the Card Bus slot enables the use of PCMCIA cards for additional expansion.
* 10/100/1000BASE-T copper interface
* Supported SFP fiber interfaces: SX, LX and ZX
* Autotest performance measurement of Email, Web, File, DNS, DHCP, WNS, Novell, Print, FTP, Primary DC, Secondary DC Servers, Switches and Routers.
* Ping, Trace Route, and SNMP Queries verify connectivity to userdefined devices.
* Statistical analysis of the network condition.
* Traffic Generator up to full line rate at 10/100/1000 Mbit/s speeds.
* RFC 2544 tests for throughput, latency, back-to-back frames and frame loss measurement at full 1 Gbit/s line rate.
* VLAN tag and priority fields are configurable.
* QoS IP TOS and DSCP settings are configurable.
* IP and MAC Loopback measure precise roundtrip delay at layer 2 (MAC) or layer 3 (IP).
* Locate Switch Port & Blink Hub Port locates live network cable connections.
* Network Database stores station information.
* Wiremap Test to locate miswires using the Wiremap Adapter.
* 1GB CompactFlash card included
* Removable/Rechargeable Lithium Ion batteries
* Battery life: 5 to 8 hours of operation
* AC Power adapter: 100 240 V AC, 0.5 A, 47 63 Hz (output 12 V DC, 1.5 A)
* 2.38" x 6.25" (60 mm x 160 mm) touch-sensitive color LCD display screen
* Size: 9" x 4.5" x 2.6" (228 mm x 114 mm x 66 mm)
* Universal Serial Bus (USB 1.1)
* Talkset Interface: 3.5 mm stereo jack
