Powertrend 3010 ac dropout burst simulator

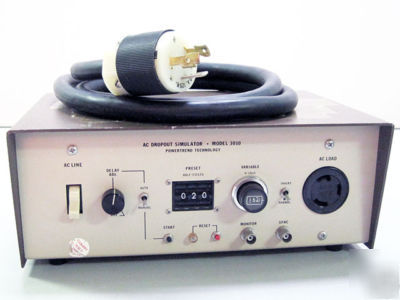

POWERTREND 3010 AC DROPOUT BURST SIMULATOR
* AC Line Voltage: 95-130 Vac or 190-260 Vac, 50/60 Hz single phase.
* Load Current: 30 amps rms maximum at 115 Vac and 10 amps at 230 Vac
* AC Dropout Range: 0-500 cycles continuously adjustable using the Preset switch and Variable control
* Burst Range: 0-499.5 cycles, with 0-180 turn-on delay
* Variable: Dial range is 0-10 ms. Accuracy is 3% of full scale. Dropouts and bursts begin on the negative-to-positive line voltage transition
* Triggering: Manual and autotriggering is provided. Use the Delay knob to adjust the retriggering rate from approximately 0.2 to 12 seconds, as measured from the end of one event to the beginning of the next
* Sync Output: Generates a positive TTL-level pulse for triggering an external monitor scope
* Monitor Output: Produces an output pulse equal in length to the preset interval the variable dial setting
* AC Connectors: The standard model 3010 is wired for 115 Vac and fitted with NEMA L5-30 twistlock plug and receptacle.
