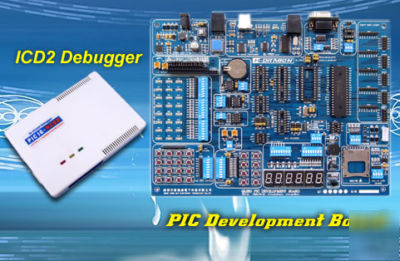

Pic ICD2 debugger & programmer +QL200 development board
USB+RS232 COM Serial PORT ICD2 PIC In-circuit Debugger and Programmer
USB+RS232 COM Serial PORT ICD2 PIC In-circuit Debugger and Programmer :
An all-in-one debugger/programmer solution: MPLAB ICD 2 is a low cost, real-time debugger and programmer for selected PIC MCUs and dsPIC DSCs. Using Microchip Technology's proprietary In-Circuit Debug functions, programs can be downloaded, executed in real time and examined in detail with the debug functions of MPLAB. Set watch variables and breakpoints from symbolic labels in C or assembly source code, and single step through C source lines or into assembly code. MPLAB ICD 2 can also be used as a development programmer for supported MCUs.
The secret behind In Circuit Debugging is two dedicated hardware lines (microcontroller pins used only during debugging mode) that control In Circuit Serial Programming (ICSP ) of the device and, afterwards, debugging through proprietary, on-chip firmware. The ICD 2 debug features are built into the microcontroller and activated by programming the debug code into the target processor. There is some shared overhead expense that includes one stack level, some general purpose file registers and a small area of program memory when in the debug mode.
IMPORTANT NOTE: MPLAB ICD 2 requires minimal design guidelines be followed to ensure stable communications between the unit and the target.
PIC and dsPIC digital signal controllers. Using the powerful user interface of the MPLAB IDE
(Intergrated Development Environment).
* USB (Full Speed 2 M bits/s) & RS-232 interface to host PC
* Real time background debugging
* MPLAB IDE GUI (free copy included)
* Built in over-voltage/short circuit monitor
* Firmware upgradeable from PC
* Supports low voltage to 2.0 volts. (2.0 to 6.0 range)
* Diagnostic LEDs (Power, Busy, Error)
* Reading/Writing memory space and EEDATA areas of target microcontroller
* Programs configuration bits
* Erase of program memory space with verification
* Peripheral freeze-on-halt stops timers at breakpoints
* Built-in USB Reset self-reconnected function.
* High reliably ICs and Components.
* Compact design with mounting hole.
* Increased overcurrent protection
* Increased electrostatic protection
* Increased User Board first opened power protection
* Increased Users Board Overvoltage Protection
Universal Programming Module(free):
1. This is an easy to use Universal Programming Module for ICD2,MCD2,ICD2.5,PICKIT2..
2. Using a clamp for the SOIC Support socket :SOT23-6(PIC10FXXX) SO-8 SO-14 SO-18 SO-28 TQFP44 PQFP44 PLCC44 TQFP64 DIP40
6. 40-Pin 3M ZIF socket. ZIF on programmable chip package: DIP8, DIP14, DIP18, DIP20, DIP28, DIP40
ICD2 Devices Support Details (MPLAB IDE 7.62 version):
10-bit D/A converter TLC5615 chip, direct digital-to-analog converter, on-board analog output interface(remark:TLS5615 is optional US $3.00).
DS18B20 digital temperature sensor 1-wire bus communication, wide range for temperature measurement, high accuracy and sensitivity (remark:DS18B20 is optional US $2.00).
Stepper motor driver circuit(remark: Setpper motor is optional US $5.00).
MMC\SD card slot - For MMC\SD memory cards. Used for data acquisition.(remark: MMC\SD card is optional US $15.00-1G SD).
12864-Chinese character LCD 128*64 lattices(remark: LCD 128*64 is optional US $15.00).
2) 128*64LCD and 16*2 LCD module
7) IIC (24C01/02 EEPROM)communication module
8) SPI (93C46 EEPROM)communication module
12) On-board programming module (USB Communication)
13) Chip socket and system clock selection
14) Digital LED display with 6bit 7-segment
15) Remote control receiver and decoder module
17) Beeper experimental module
18) RS-232 communication for connection with a PC or any other device with a DB9 connector
21) Stepper Motor Driver Module
22) SD/MMC card Read/Write Module
1. USB & RS-232 PIC ICD2 In-circuit Debugger and Programmer.(PIC16-MCD2)
2. QL200 PIC DEVELOPMENT Board +
5. Universal Programming Module.
6. 1 x 6-Pin Individual ICSP Cable.
7. 1 x RJ12 Connection Cable.
9. 1602 LCD with Yellow backlight
10. CD-ROM (icd2 soft,Programmer Driver , English version PDF User manual ,QL200 Layout,QL200 Board Schematic , Sample code (C / ASM) , MPLAB 7.50 .)
11. Dupont thread expansion connection 20x wire
12. Power supply(110-240 AC TO 9V DC)
Package Size: 290mm*220mm*160mm
