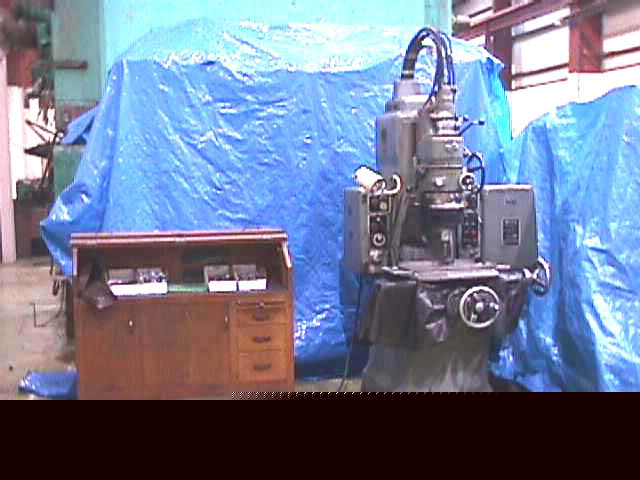

Moore no. 2 precision vertical jig grinder
MOORE NO. 2 PRECISION VERTICAL JIG GRINDER
Table Travel: 10 1/4" x 14 1/4"
Maximum Height, Table Top To Wheel Chuck:
Spindle To Column Below Way: 13 1/2"
Vertical Travel, Main Spindle Slide: 3 5/8"
Vertical Travel, Main Spindle Housing: 10"
(4) Main Spindle Speeds: 425, 575, 850 & 1,040
Eccentric Offset Of Grinding Spindle:
A) Rough Adjustment With Machine Stopped:
B) While Running By Tenths: .075"
Grinding Capacity: With Diamond Charged Man-
drels: 1/32" Or Less Up To 3/16", With
Mounted Points Or Grinding Wheels: 3/16"
Moore Cabinet, (Very Desirable)
Factory Motor Specifications For Main Spindle &
Vertical Power Feed: 1/4 HP, 220/440 Volt, 3
Phase, (Currently Wired For 220 Volts)
The air feed has an air blow-by relief valve and is not letting
the air feed work. The spindle drive is going up and down and is
a little bit erratic. Both are believed to be easy fixes. We do not know
the machine well enough to fix. It could be an adjustment in both cases
Approximate Dimensions Of Machine: 54" D x 44" W x
Approximate Dimensions Of Cabinet: 55" x 18" x 44"
Approximate Total Weight: 3,200 Lbs.
