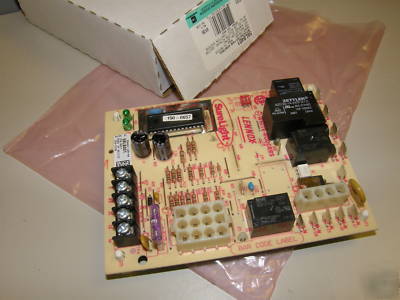

Lennox 56L8401 nitride ignition integrated furnace cont
Includes diagnostic indicator flash codes.
Replaces 50A65-1 20, - 143, -288, -474, -475 controls (consult Integrated Nitride Module Reference Chart below).
Input Voltage..................... 25 VAC 50/60 Hz
Maximum Input Current @ 25 VAC ... 0.45 amp
Valve Relay...................... 1.5 amp @ 25 VAC 50/60 Hz 0.6 pf
Ignitor Relay..................... 6.0 amp @ 120 VAC 50/60 Hz (resistive)
Inducer Relay.................... 2.2 FLA 3.5 LRA @ 120 VAC
Circulator Relay .................. 14.5 FLA 25.0 LRA @ 120 VAC
Electronic Air Cleaner and Humidifier.. 1 A @ 120 VAC
Operating Temperature Range....... -40 to + 75 F (-40 to +79 C)
Humidity Range .................. 5% to 93% relative humidity (non-condensing)
