New port 2835-c high-performance 2-channel optical meter

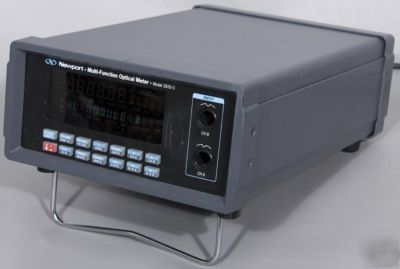

Newport 2835-C Multi-Function Optical Power Meter
Specifications are from Newport and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The unit powers up and recognizes our detector (not included). This unit is guaranteed NON-DOA.
Link to the Datasheet: Newport 1835-C & 2835-C Series Optical Meter Datasheet
Link to the Manual: Newport 2835-C Optical Meter Manual
* Greatest possible versatility in a single optical meter
* DC optical power measurements in the 100 fW - 300 W range
* Pulsed and integrated energy measurements
* Fast IEEE-488 data throughput, 50-100 Hz, depending on software interface
* Large variety of programmable input and output controlling triggers
* Sophisticated automation capabilities in testing and laboratory applications
* Includes both RS-232C and IEEE-488 interfaces
* Vacuum fluorescent display provides excellent legibility from any angle, in any light condition
* Analog bar graph with 10X zoom
* Audible beep on pulse arrival
* Wavelength calibration in 1 nm steps
* Trigger in/out control with alarm levels
The Model 2835-C Multi-Function Optical Meter is a high performance instrument with a wealth of measurement and triggering features designed to provide measurement sensitivity, flexibility and speed. In spite of its power, Model 2835-C is also designed to provide simple operation with direct panel access to basic features and a shallow menu for access to advanced features.
Great flexibility exists within the command structure of the Model 2835-C so that even complex measurements can be set up quickly and easily. The 2835-C can react to or provide triggering, act as an exposure or noise meter, or data log up to 1,000 measurements per channel!
The Model 2835-C is compatible with all of Newport's Low-Power, High-Power and Energy detect or families. A family tree of the 2835-C compatible detectors and accessories are listed in the manual.
Display Type: 6-digit vacuum fluorescent
Sampling Resolution: 20,000 count < or = to 25 Hz, 4096 count < or = to 1 kHz
Current Sensitivity (Full-Scale): 2.5 nA - 2.5 mA
Voltage Sensitivity (Full-Scale): 790 V - 25 V
Sampling Rate: Up to 1 kHz single-channel, Up to 500 Hz dual-channel
Bandwidth (-3 dB): DC to 1 MHz(1)
Analog Output: 0 - 2.5 V into 50 &Omega
DC Accuracy: < 0.1% typical
Peak-to-Peak Accuracy: 1% typical
Pulse-to-Pulse Accuracy: 1% typical
Integration Accuracy: 1% typical
Power Requirements: 90 - 240 VAC
Operating Temperature: 10 C to 40 C, < 80% RH
Storage Temperature: -25 C to 60 C, < 90% RH
Note 1: Gain and detector dependent
* Picture 3 - Front View with a Detector (Not Included)
* Picture 5 - Serial Number Tag
