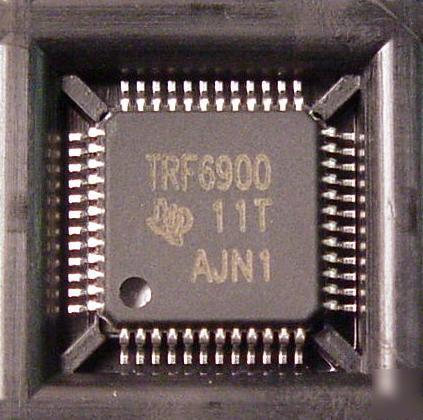

TRF6900 ti single chip rf transceiver nos lot of 4
* Single-Chip RF Transceiver for 868 MHz and 915 MHz ISM Bands
* 850 MHz to 950 MHz Operation
* FM/FSK Operation for Transmit and Receive
* 24-Bit Direct Digital Synthesizer (DDS) With 11-Bit DAC
* On-Chip Reference Oscillator
* Minimal External Components Required
* Typical Output Power of 4.5 dBm
* Typical Output Frequency Resolution of 230 Hz
* Ultrafast Lock Times From DDS Implementation
* Two Fully Programmable Operational Modes
* Fast Radio Strength Signal Indicator (RSSI)
* Flexible Serial Interface to TI MSP430 Microcontroller
* 48-Pin Low Profile Plastic Quad Flat Package (PQFP)
* The synthesizer has a typical channel spacing of approximately 230 Hz to allow narrow-band as well as wide-band application. Due to the narrow channel spacing of the direct digital synthesizer (DDS), the DDS can be used to adjust the TX/RX frequency and allows the use of inexpensive reference crystals.
* New Old Stock Parts from Original Packaging
* This is the TRF6900 part, there was a later version of this part called the TRF6900A
* Obsolete now, but had been designed into many transceivers
