Sparkfun - arduino protoshield kit - dev-07914
Riding on the waves of the very popular Arduino USB board is this small prototyping shield. Originally spawned with collaboration between the folks at and ITP @ NYU, the Protoshield mates with the Arduino USB board and gives the user a small soldering area, two general LEDs, access to a BlueSMiRF socket, a general pushbutton switch, and most important of all - the Arduino reset switch is brought to the top level.

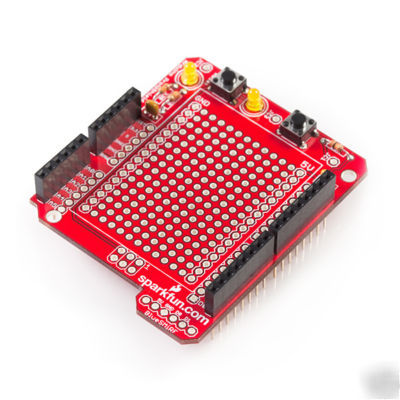

The kit is pictured with the bread-board option. We highly recommend this breadboard! See the related items below for all the colorful options of breadboards you have.
* 2x Stackable Headers 6-pin
* 2x Stackable Headers 8-pin
* 2x 0.1uF Ceramic Capacitors
* All Arduino pins are brought to the top level
* 5V, GND, and Raw pins are exposed as well
* BlueSMiRF socket for wireless communication between Arduinos
* Reset button brought to top level
* Assembly Tutorial by Bob Gallup
