Quality 4 pin locking plug & socket BSA1EB
Manufactured to military specification from anodized aluminium, these are a lovely quality compact and neat 4 way chassis plug (with pins) and matching 4 way cable mount female.
The chassis mount part has 3 locating lugs so the female can only be inserted one way, and once inserted, the cable mount female locks on to the chassis mount plug by a secure twisting locking ring.
The cable female measures about 42mm in length and is about 17mm diameter at the widest point. Looks to take a maximum cable diameter of about 7mm.
The chassis plug is secured to the panel by a single locking nut and requires a fixing hole of about 13mm, the back of the chassis plug is 23mm square and the plug protrudes away from the chassis by about 21mm.

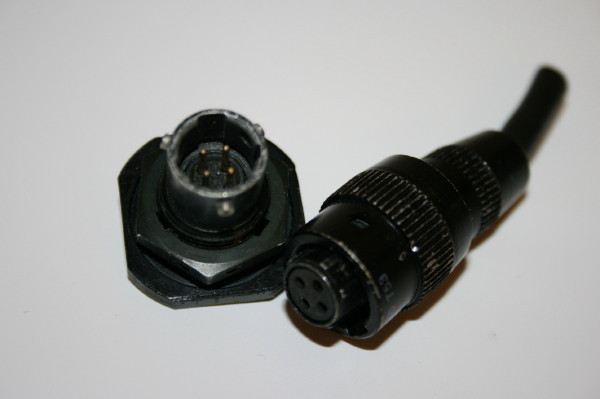

SUPPLIED AS SHOWN IN THE PHOTO
