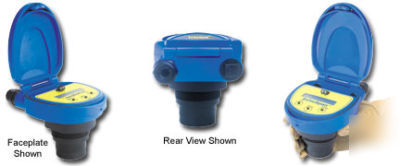

Flowline echospan two-wire ultrasonic level transmitter
This level transmitter is brand new in box. It has never been used. It was purchased for a project, and we decided to go with another unit instead. This decision is your gain!!!
The general purpose two-wire ultrasonic transmitter provides non-contact level measurement up to 32.8' or 10m, and is ideally suited for challenging ultrapure, corrosive or waste liquids. Push button calibrated, the transmitter is broadly selected for atmospheric bulk storage, day tank and waste sump applications. Media examples include wastewater and sodium hydroxide
Setup is fast and simple with push button calibration and LCD display
Offered in three measurement ranges up to 10m with 2" transducer
6-segment LCD display indicates level in inch or centimeter values
Narrow 3" minimum beam width for applications with restricted space
PC/ABS enclosure rated NEMA 4X with rugged PVDF transducer
LU81: 8" to 16.4' (20cm to 5m)
LU83: 8" to 26.2' (20cm to 8m)
LU84: 12" to 32.8' (30cm to 10m)
30 psi (2 bar) @ 25 C., derated @ 1.667
