Kenwood vhf repeater 144-148MHZ tk-730 2 meter ham

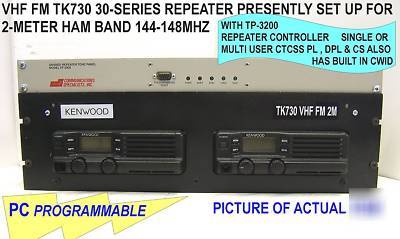

KENWOOD 30-SERIES PC PROGRAMMABLE RACK MOUNTABLE FULL DUPLEX *45-WATT REPEATER. Set up for best performance in the VHF FM 2-M ham band 144-148Mhz range. WITH TP-3200 REPEATER CONTROLLER IT CAN BE PROGRAMMED AS A SINGLE USER REPEATER or MULTI USER COMMUNITY REPEATER RF POWER OUT PUT *45-WATTS [**]see note
THE 30-SERIES TK-730 RF DECKS ARE COMMERCIAL GRADE RADIO SYSTEM THEY CAN BE REPROGRAMMED AND RETUNED FOR USE AS A REPEATER IN THE TYPE-1 150-174mhz commercial two-way range
I CAN REPROGRAM & RETUNE THIS REPEATER FOR YOU FOR $50.00 EXTRA.
BOTH OF THE RF DECKS ARE 32 CHANNEL TK-730 WIDE BAND FCC ID# ALHTK-730-1 **HAM RADIO unlike the (G) version this version (TK-730 wide band) radio works great in the 144-148mhz 2-M ham band.
THIS ITEM HAS BEEN CLEANED & BENCH TESTED IT IS IN GOOD PHYSICAL & WORKING CONDITION IT HAS SOME DINGS & SCRATCHES FROM NORMAL USE.
THE FREQUENCIES PROGRAMMED IN IT ARE
CH-2 RX 144.410mhz TX 145.010mhz

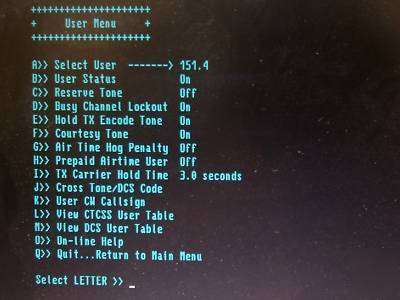

IT HAS 1 USER CODE PROGRAMMED INTO THE CSI TP-3200 IT IS CTCSS PL 151.4 NOTICE THE TP-3200 HAS BEN RESET TO THE FACTORY DEFAULT USER ACCESS CODE that is included in the instruction manual.

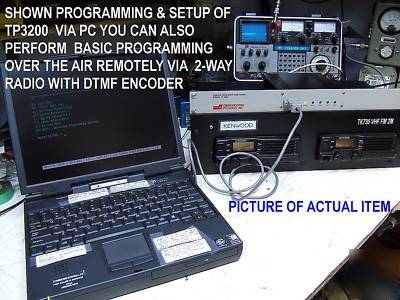

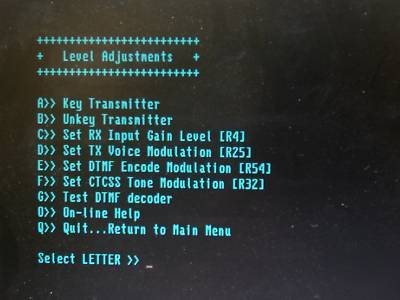

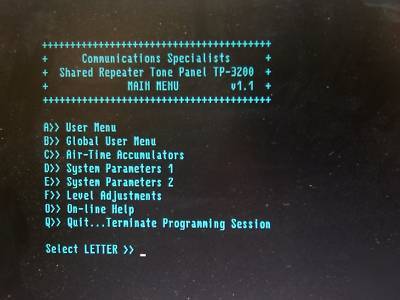

THE CSI TP-3200 IS A PROGRAMMABLE REPEATER CONTROLLER IT CAN BE PROGRAMMED AS A SINGLE USER OR MULTI USER COMMUNITY REPEATER THAT SUPPORTS UP TO 157 USER CODES 51 CTCSS CODES 106 DPL CODES ALSO SUPPORTS CARRIER SQUELCH REPEAT AND HAS PROGRAMMABLE CWID PER USER adjustable TOT (time out timer) repeater hang time, repeater af level out & ctcss dpl output level can also be adjusted as needed THE TP-3200 CAN BE PROGRAMMED VIA PC DIRECTLY CONNECTED TO THE FRONT PANEL OR BASIC PROGRAMMING OVER THE AIR VIA DTMF.

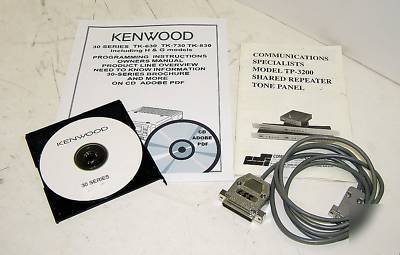

EXTRAS INCLUDED: YOU WILL RECEIVE A CD WITH THE INSTRUCTIONS NECESSARY PORTIONS OF THE TK-730 SERVICE MANUAL PROGRAMMING INFORMATION THE OWNERS MANUAL FOR THE TP-3200 REPEATER CONTROLLER & PROGRAMMING CABLE FOR THE TP-3200 FREE PC PROGRAMMING SOFTWARE & MORE.
BENCH TESTED: On output TX 145.610Mhz MAX RF OUT =45 Watts, Repeat & Mic AF dev OK, CTCSS & DPL, encoder all OK. RX input TEST ON 145.010Mhz RECEIVER SENSITIVITY test .20uv RF=-19db SINAD, .35uv RF=-26db SINAD CTCSS & DPL decoder OK. that's excellent receiver sensitivity.
[**]KENWOOD'S TK-730 IS A HEAVY DUTY RADIO MADE FOR PUBLIC SAFETY USE. USED PROPERLY IT CAN RUN CONTINUOUS DUTY BY TURNING THE RF POWER DOWN TO 2-WATTS & USING AN EXTERNAL RF AMP OR RUN INTERMITTENT DUTY @ 20-WATTS
*RF POWER OUTPUT IS ADJUSTABLE 2-watts to 45-watts I do not recommend running it @ 45-watts. I WOULD RATE THIS @ 20-WATTS FOR INTERMITTENT DUTY
Duplexer is not included. You will have to connect it to your duplexer, combiner or two antennas. DC Power supply is not included. I have several good used DC power supply's if you need one contact me for price.

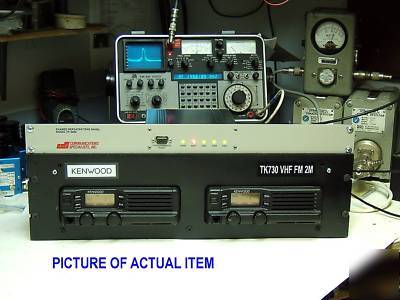

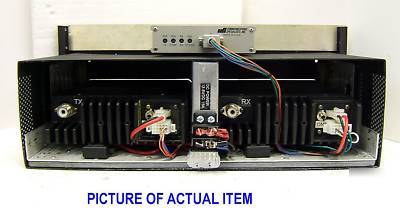

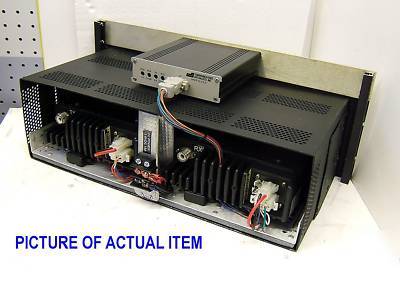

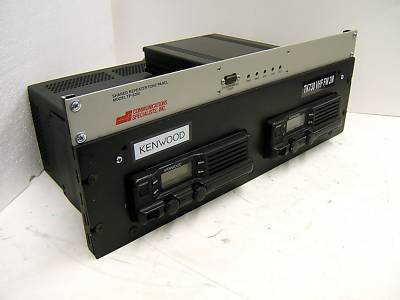

PICTURES: THE PICTURES ARE OF THE ACTUAL ITEM Test equipment and other items in the back ground are not included.
