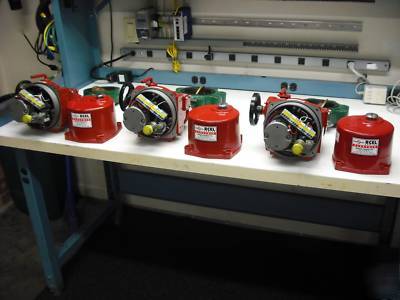

RCEL006 24VDC actuator and 4" butterfly valve (nice )
RCEL-006 24vdc Motor Driven Valve Actuator!!
http:// /products/electric.cfm?F=5\
http:// /index.php?option=com_products&id=55&task=view&Itemid=2
* Standard enclosure IP-67, NEMA 4, 4X.
* Squirrel cage, totally enclosed motor
* Standardized and color-coded wiring
* Manual override hand/auto declutch lever, automatic reset when motor is energized
* Hand wheel designed for safe, efficient operation
* Mounting standardized to ISO-5211; removable drive bushing can be machined to match valve stem
* Worm gear drive for longer life and low maximum noise level of 50dB
* Indicator top mounted for continuous visual indication of valve position
* 20 watt internal heater to minimize condensation due to temperature and humidity changes
* Cam actuated, end of travel limit switches are easily adjusted to de-energize actuator for precise valve position
* Torque switch is cam actuated and factory set to provide over torque protection for valves, available in size RCEL-15 thru RCEL-250
* Mechanical limit stops designed to prevent over-travel of quarter turn applications ,Valve back drive is prevented by a rolled steel worm gear and aluminum bronze
