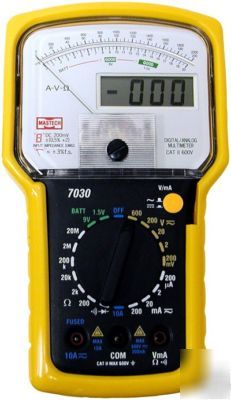

Mastech 7030 ac/dc analog multimeter w/ digital display
Mastech Analog Multimeter with Digital Display, 7030
The newly introduced Mastech 7030 analog multimeter is fully featured and can be used to measure AC/DC current and voltage, resistance, as well as diode and continuity buzzer. It also has a built-in 1.5V and 9V battery tester with a 100mA/10mA load respectively. One thing unique about this meter is it comes with a digital display, so you can read both the analog dial and watch the variation of the parameter, and get a fairly accurate reading from the display.
* DC Voltage: 0~200m/2/20/200/600V Digital display: 0.5% Pointer: 3%
* AC Voltage: 0~2/2/20/200V Digital display: 0.8% Pointer: 4%
* 200m/600V Digital display: 1.2% Pointer: 4%
* DC Current: 0~200 /2m/20mA Digital display: 1.0% Pointer: 3%
* 200mA Digital display: 1.2% Pointer: 3%
* 10A Digital display: 1.5% Pointer: 3% f.s.
* AC Current: 0~200 /2m/20mA Digital display: 1.5% Pointer: 4%
* 200mA Digital display: 1.8% Pointer: 4%
* 10A Digital display: 2.0% Pointer: 4%
* Resistance: 0~200/20M Digital display: 1.2% Pointer: Pointer: 3%
* 2k/20k/200k/2M Digital display: 0.8% Pointer: Pointer: 3%
* Diode Test: Test current: approx 1mA, Test voltage: approx 2.4V
* Continuity Buzzer: 0~30 Sound
* Analog and Digital Readout
* 1.5V and 9V battery tester
* Confirms to the EN61010/IEC1010 standard CAT II 600V
